Electronic components Optical Sorting Machine

LANCE INDUSTRIAL is a professional manufacturer specializing in the R&D and production of automated inspection equipment, visual inspection equipment, and optical sorting machines. Our Electronic Components Optical Sorting Machine is one such machine, specifically designed for electronic components. It can inspect components for size, color, stains, defects, etc., identifying substandard components and selecting those that meet customer design requirements. Its efficiency reaches 300-1200 pieces per minute, and it evaluates components based on their

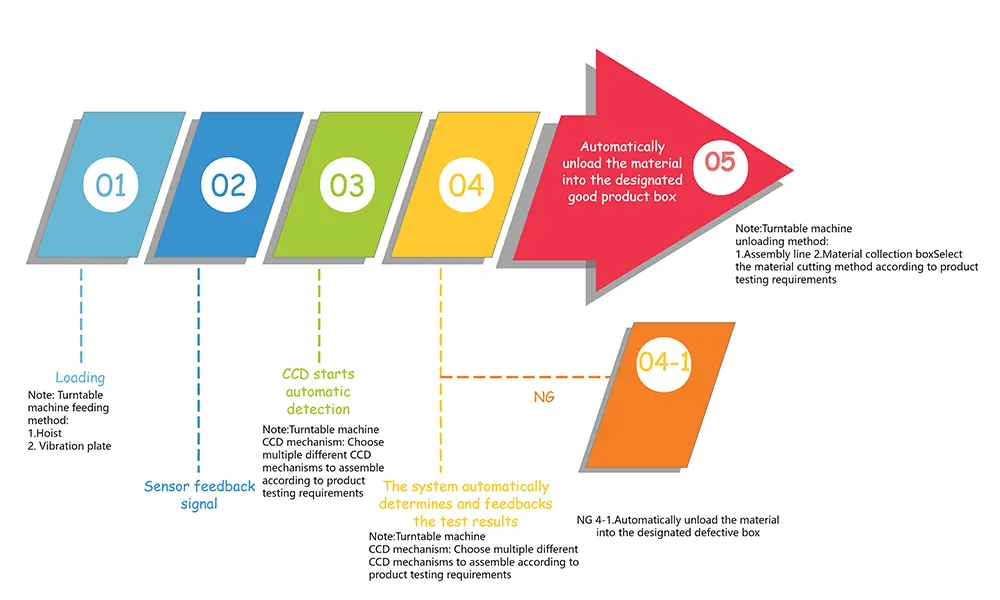

Equipment testing process

The Electronic Components Optical Sorting Machine operates by arranging electronic components in an orderly manner using a vibratory feeder, conveyor belt, or robotic arm, and then transporting them to the front of a linear track. The conveyor belt or vibratory feeder then moves the products to a CCD camera for visual inspection, and the captured images are transmitted to visual software for analysis to determine whether the products are good or defective.

Product Parameter

Product Feature And Application

1. sample image

2.Inspection Items:

--Bottom surface inspection for damage and gaps.

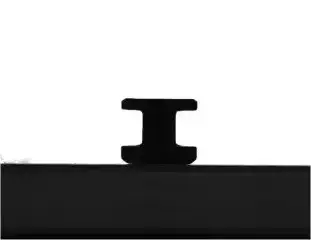

-- Side surface inspection for height and width.

--Top surface inspection for damage and gaps.

3.Sample testing result and pictures

Original--Front lighting

OK-Front lighting

NG-Front lighting-The printing is reversed

NG-Front lighting--The printing is tilted

NG-Bottom lighting--Poor connection

Original-Side lighting

OK-Side lighting

Original-Top lighting

Original-Top lighting

NG-Top lighting-The printing is reversed

Other application:

Electronic Components Optical Sorting Machine is used for testing component. It can also be adjusted to inspect different types of components and meet varying customer testing requirements, allowing for the inspection of different types of metal electronic components.
