Rubber Plug CCD Automatic Visual Inspection Equipment

LANCE INDUSTRIAl is a professional CCD automatic visual inspection machines manufacturer and supplier in China.Rubber Plug CCD Automatic Visual Inspection Equipment features a dedicated vibratory feeder automatic feeding mechanism, primarily used for inspecting length, height, diameter, mixed materials, deformation, missing materials, burrs, black spots, scratches, and other defects. It is suitable for inspecting various components such as rubber rings, screws, mobile phone accessories, stainless steel, aluminum, and plastics. Its accuracy can reach up to 1μm, and its inspection speed can reach 200-1200 pieces per minute. The estimated delivery time is 30 working days, and the price ranges from 20,000 to 200,000 RMB. If you have customized needs, please contact us. LANCE INDUSTRIAl can provide solutions and more accurate quotations.

Product Parameter

Model：Rubber Plug CCD Automatic Visual Inspection Equipment

Size：900*800*1850mm

Speed ：240pcs/minute

Advantages of Machine Vision Inspection Systems

Our Rubber Plug CCD Automatic Visual Inspection Equipment for rubber stoppers provides comprehensive and traceable visual information that is easy to integrate and store. This equipment significantly improves grayscale accuracy while also enabling target observation with micron-level precision. Our machines are stable and fast.

Testing Cases

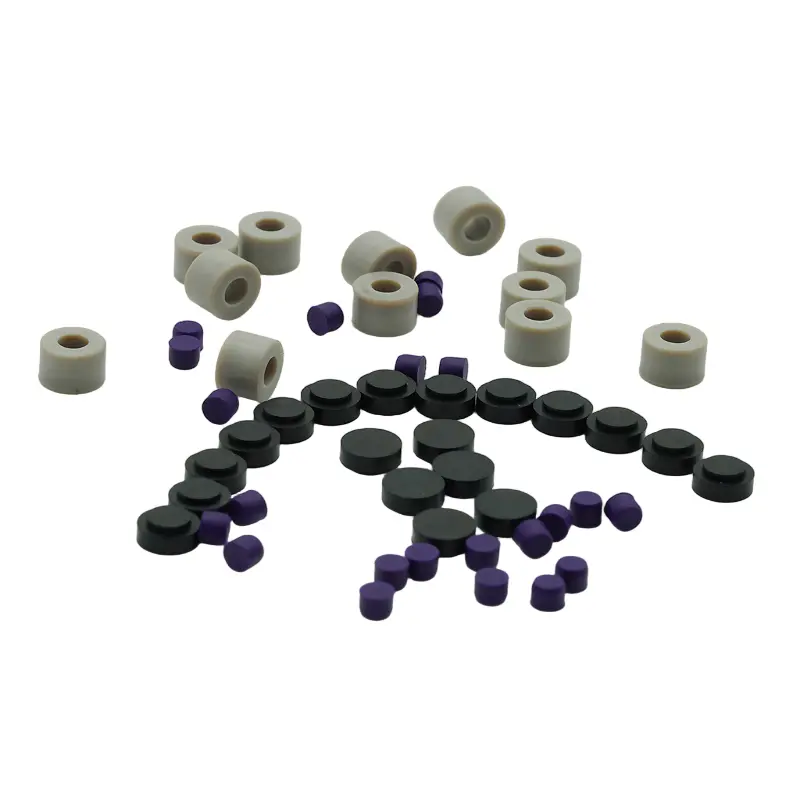

1. Sample picture:

2.Testing Content and Requirements

3. Sample test images:

Top light-original

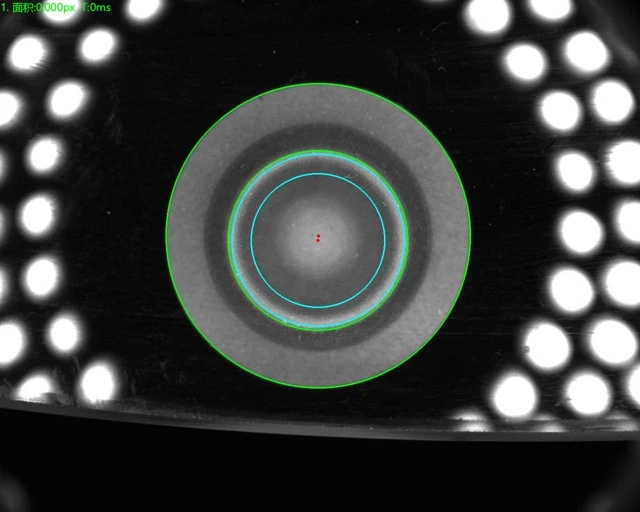

Top light-OK

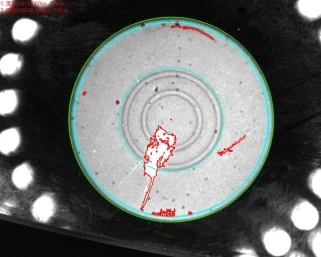

Top light-NG-damage

Top light-OK

Top light-NG-incomplete

Bottom light-OK

Top light-NG-incomplete

Other application

Rubber Plug CCD Automatic Visual Inspection Equipment for rubber plugs can also inspect of various shapes. If you have other needs for inspecting rubber plugs, please feel free to contact us. We will customize a solution for you and design a vision inspection equipment, vision robot system, automatic conveyor belt and inspection software system that can simultaneously inspect multiple styles.

FAQ

Q: What products and defects does this equipment mainly detect?

A: The Rubber Plug CCD Automatic Visual Inspection Equipment is mainly used for detecting rubber plugs. It can precisely detect defects such as length, height, diameter, mixing, deformation, shortage, burrs, black spots, scratches, etc. It is also suitable for various components such as rubber rings, screws, mobile phone accessories, etc., covering different materials such as stainless steel, aluminum, and plastic, and meeting the detection needs of multiple industries.

Q: What are the detection accuracy, speed and specifications?

A: The detection accuracy can reach up to 1μm. The regular detection speed is 240 pieces per minute, and it can reach up to 200-1200 pieces per minute, which can be adjusted according to the complexity of the product. The standard size of the equipment is 900*800*1850mm. The structure is compact and it is suitable for most workshop layouts.

Q: What is the delivery period and price range for the equipment?

A: The estimated delivery period for the equipment is 30 working days. The price range is from 20,000 to 200,000 RMB. The specific price will be adjusted according to the customer's customization requirements. We can provide exclusive solutions and precise quotations upon contacting us.

Q: What specific defects can the equipment detect and what detection methods are used?

A: It can detect defects such as damage, burrs, scratches, and dimensional deviations. Among them, damage, burrs, and scratches are detected using top light, while dimensional detection is done with bottom light. The detection results are clear and traceable, making it convenient for subsequent data storage and analysis.

Q: Can the equipment be customized? Can it meet special requirements?

A: Customization services are supported. If the customer has special testing requirements for rubber plugs and other components, please contact us. We can design an exclusive testing plan, along with a visual inspection equipment, visual robot system, automatic conveyor belt and inspection software system, to achieve simultaneous testing of multiple styles.
