Ring seal One Click Flash Tester

LANCE INDUSTRIAL is a professional supplier providing vision inspection solutions and inspection machine. Our Ring seal One Click Flash Tester boasts high repeatability accuracy, solving the problem of poor data consistency in repeated measurements of the same product. The instrument has a simple structure, requiring no displacement scale or grating ruler, and no need to move the worktable during measurement, resulting in excellent instrument stability. Since the accuracy scale is based on CCD camera pixels, which do not change over time or are affected by temperature and humidity, the instrument's accuracy is stable, and automatic calibration of measurement accuracy can be achieved through software.

Product Features

--Ring seal One Click Flash Tester Can simultaneously measure different features of a workpiece, with up to 99+ dimensions measured in a single programming session.

--Can measure 100+ workpieces at once: One-click simultaneous measurement, with multiple dimensions measured for each workpiece.

-- Measurement results are displayed clearly: NG is shown in red, OK in green.

--Automatic focus adjustment: "Auto focus" automatically adjusts the Z-axis height to ensure the measured object is in focus.

-- Precise processing: 1. Sub-pixel processing: Divides a pixel to below 0.01, applied to edge detection and measurement in large field-of-view mode. 2. Fitting processing: Extracts over 100 measurement edge points, performs fitting, and identifies lines, circles, arcs, etc. Measurement accuracy ±2µm.

-- Reliable data: Measurement results are consistent regardless of the user. Unlike 2D measurement tools that require experienced operators.

--Simple operation: Place the workpiece and measure with one click.

Product Feature And Application

Application

Ring seal One Click Flash Tester can inspect many products, as follows:

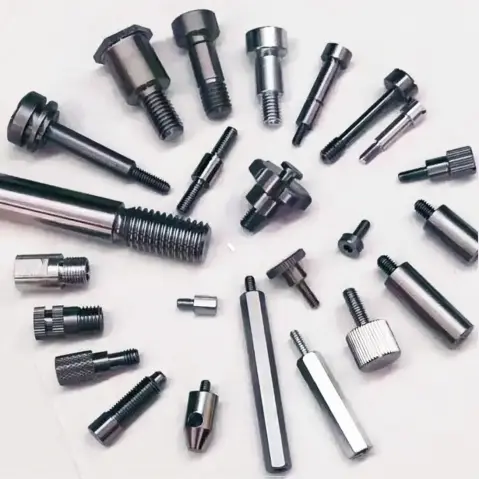

Precision metal parts

Rubber products

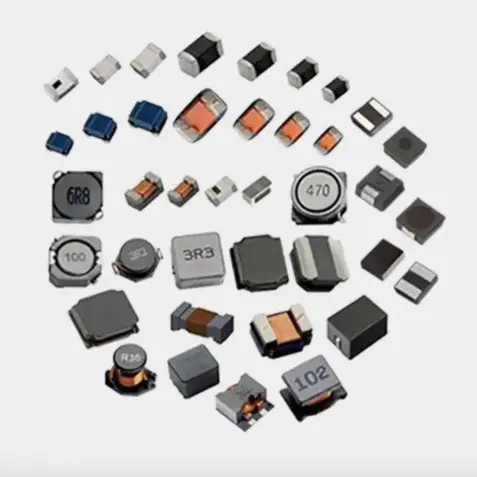

Electronic components

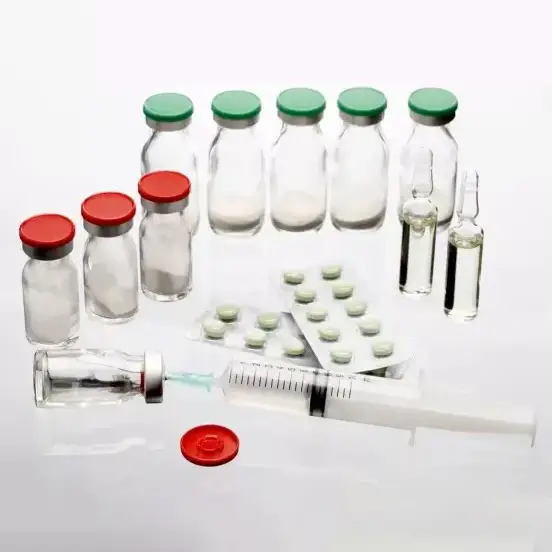

pharmaceuticals

Ceramic Magnetic Materials

others

Q&A

Question: What products does this device mainly detect? What is its core detection function?

Answer: The Ring seal One Click Flash Tester is mainly used for high-precision size measurement and defect detection of various components. It has a wide range of applications and can detect various products such as precision metal parts, rubber products, electronic components, pharmaceuticals, ceramic magnetic materials, etc. It is particularly suitable for the detection of sealing rings and other components. The core function is to enable simultaneous measurement of multiple sizes and multiple workpieces, accurately capture issues such as product size deviations and appearance defects, and the measurement results are clear and intuitive. It can quickly distinguish between good and bad products, helping enterprises improve quality control efficiency.

Question: What are the measurement accuracy and repeatability accuracy? How can the accuracy be ensured to be stable?

Answer: The measurement accuracy of the equipment is divided into two modes. The wide field of view mode is ±(3 + L/200) μm, and the high precision mode is ±(2 + L/200) μm. The repeatability accuracy of the wide field of view mode is ±2 μm, and that of the high precision mode is ±1.5 μm. The accuracy stability can be guaranteed through multiple designs. The equipment has a simple structure and does not require displacement scales or grating rulers. During measurement, there is no need to move the worktable, reducing vibration interference. The accuracy scale is based on the pixels of the CCD camera, which will not change with time, temperature, and humidity. It can also be automatically calibrated for measurement accuracy through software to ensure long-term stability.

Question: What are the specific operation procedures and advantages?

Answer: The equipment operation is extremely simple. No professional operators are required. Ordinary employees can get started with it after a brief familiarization. The operation process only involves placing the workpiece smoothly in the designated position, and then all the measurement work can be completed with just one click. The core operational advantage lies in that the measurement results are not affected by the operator's experience, avoiding the high requirements of traditional 2D measurement tools for the operator. Moreover, it can automatically adjust the Z-axis height to achieve automatic focusing, ensuring a clear measurement object, and further enhancing the operation convenience and measurement accuracy.

Question: What are the power supply requirements and core configurations?

Answer: The Ring Seal One Click Flash Tester requires an input voltage of 220V/50Hz for power supply. The working environment should have a vibration less than 0.002mm/s and a frequency lower than 15Hz. It can operate stably when placed on a flat, dry, and free from severe vibration area. The core configuration includes a 12-megapixel image sensor, dual telecentric optical lenses, a 256-level gray-scale LED ring light source, and supports 20:1 sub-image processing technology. The minimum display unit is 0.0001mm, which can meet the high-precision measurement requirements in various scenarios.
