Tire valves Optical Sorting Machine

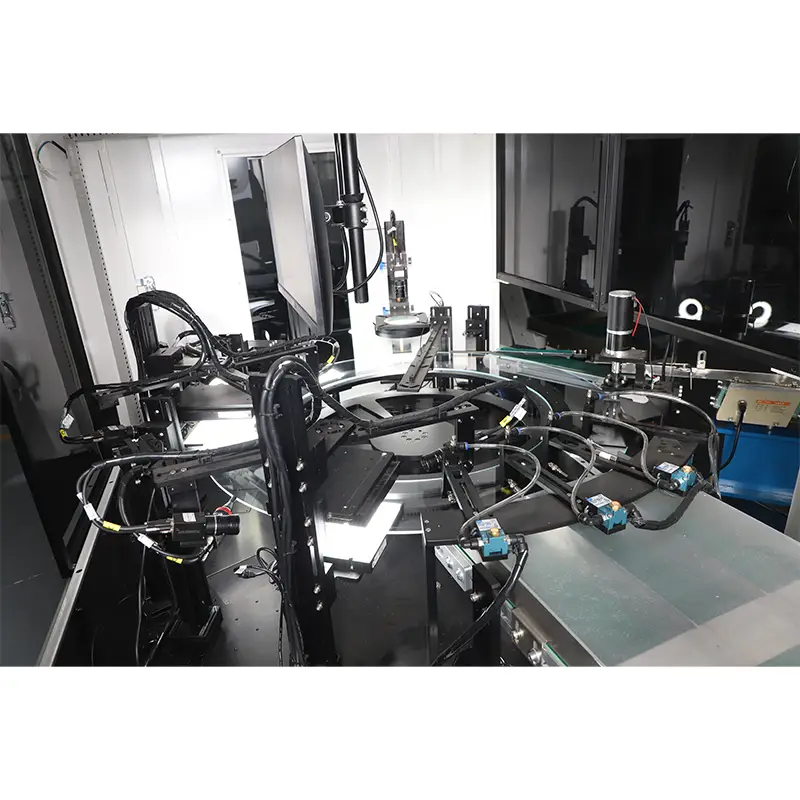

NINGBO LANCEINDUSTRIAL CO.,LIMITED is a professional manufacturer of CCD inspection machines.The tire valves optical sorting machine are widely used in the automotive parts manufacturing industry. These machines enable automated inspection applications in the manufacturing of precision parts, such as measuring the length, width, height, and diameter of parts, as well as detecting surface defects such as scratches, markings, and other defects.The cloud disk high-speed inspection machine is an automated device independently developed by our company for inspecting the appearance and structural dimensions of products. This machine adopts a PLC control system and the vision inspection system. Materials transported by a high-speed vibrating feeder are conveyed through a high-transmittance glass disk to the designated camera's field of view. Finally, a solenoid valve blows air to accurately classify defective and good products.

Main Technical Parameters

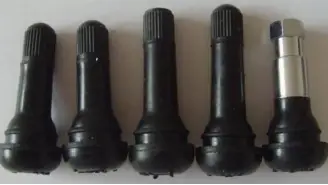

Due to material and manufacturing processes, valve stem surfaces may exhibit interference factors such as glare and uneven black surface. Our Tire valves optical sorting machines overcome these challenges through specific light source design and image processing algorithms, accurately identifying defects such as surface cracks, bubbles, and contamination. The detection system ensures clear, noise-free images of the valve stem surface through stable light source support , further improve image quality for subsequent algorithmic processing.

Testing items and requirements

In terms of appearance defect detection, the tire valves optical sorting machine can effectively identify a variety of common problems: excessive glue, insufficient glue, missing internal threads, insufficient glue on the chassis, missing external threads, excessive glue on the rings, and other surface appearance defects. The machine vision system can work around the clock to detect defects, reject defective products, and maintain stable detection accuracy. For mass-produced products like valve stems with high yield requirements, the CCD inspection system can easily achieve a detection speed of hundreds of pieces per minute while ensuring the reliability of the detection results.

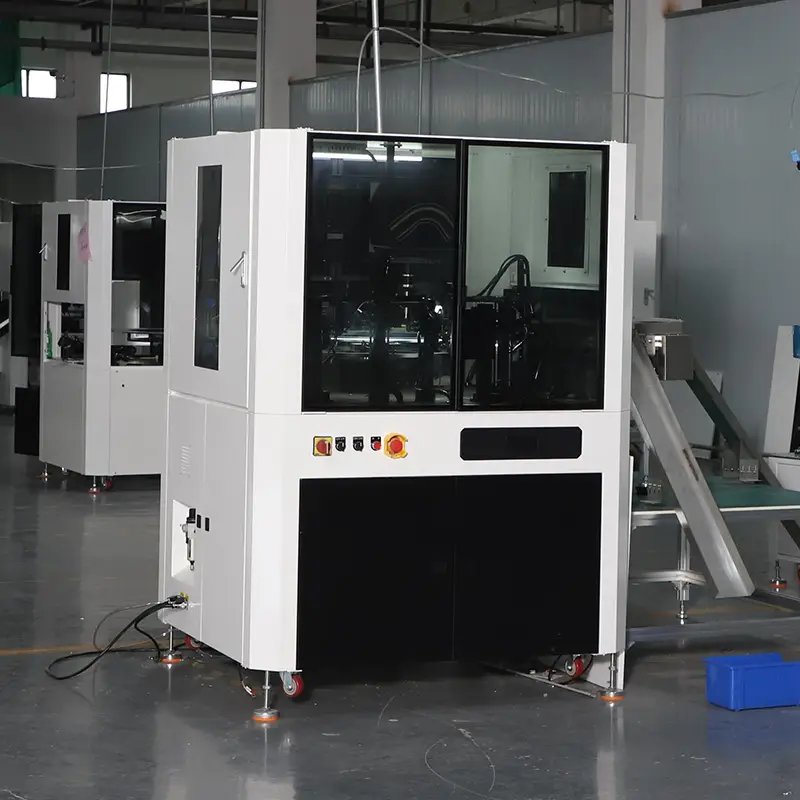

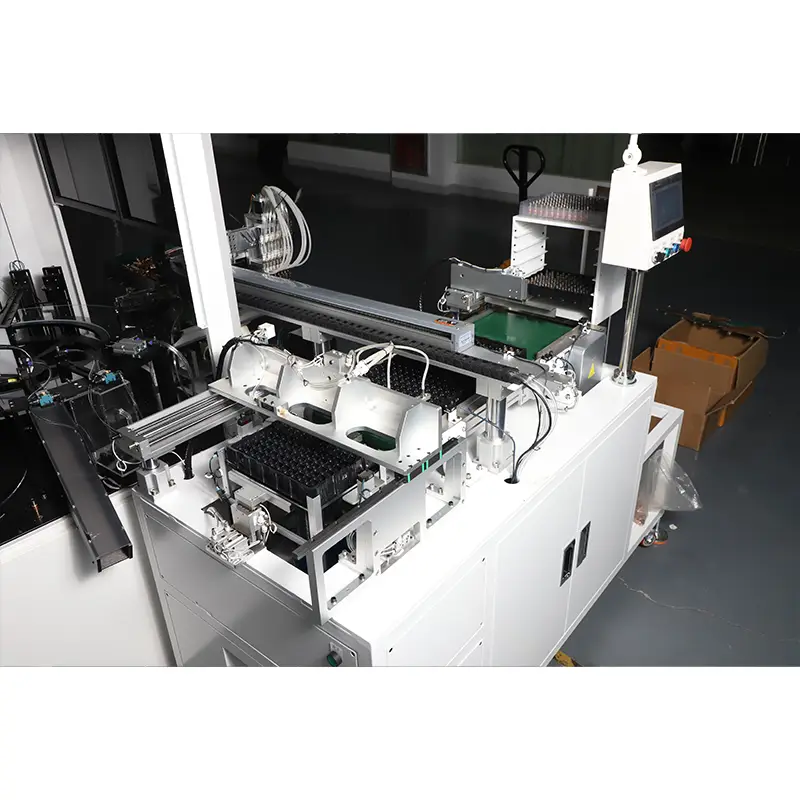

--Product Images and Drawings

-- Material feeding method

Four-way feeding: 3 outlets produce OK material from the bottom, 1 outlet produces

OK material from the top slide, and the judgment box is placed on the table.

--Terminology Explanation

OK: Passed, indicating success. NG: Failed, indicating failure.

MS: Millisecond, a unit of time. MIN: Minutes.

PCS: Unit of material per piece. K/H: Quantity per hour.

PPS: Pulses per second

--Functions and Requirements
