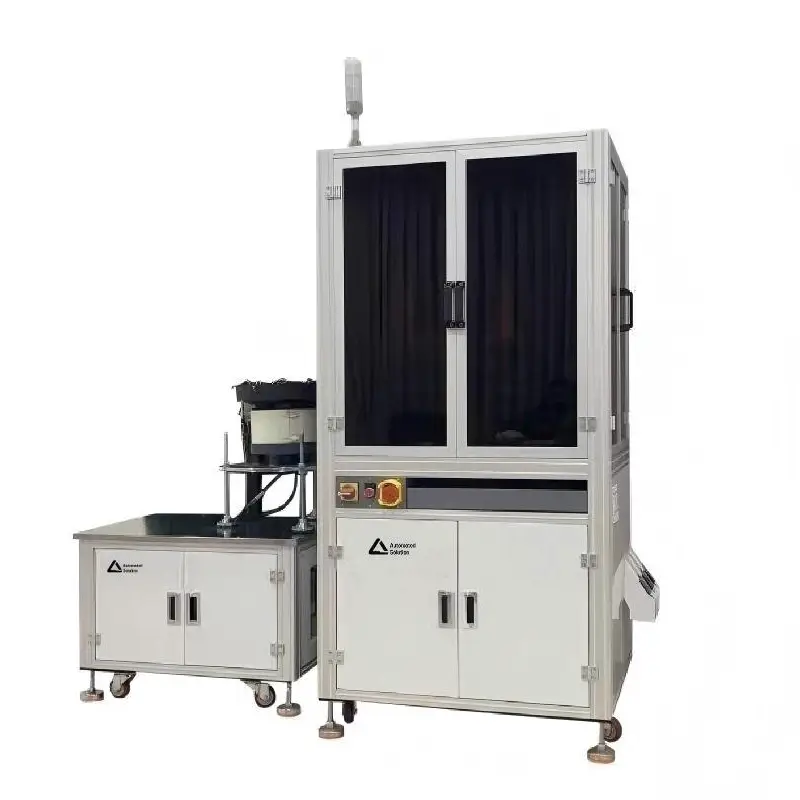

Precision Industrial Metal Parts Inspection Line

LANCE INDUSTRIAL helps many customers improve inspection speed, enhance product quality,Precision Industrial Metal Parts Inspection Line can detect dimensional issues such as length, width, height, and diameter in precision hardware. It can also inspect for dirt, missing materials, scratches, burrs, and markings, and locate and inspect holes. Compared to manual inspection, it offers higher standards, greater precision, and faster speed.

Production process:

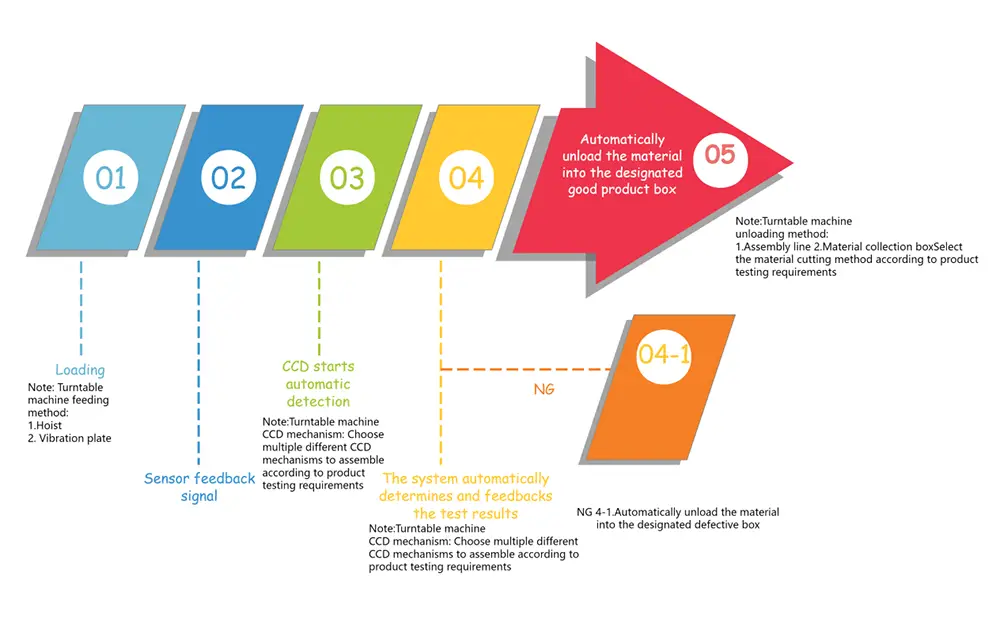

Industrial CCD cameras and lenses are used in conjunction with a vision inspection system to digitize and visualize all inspection standards. This data is then processed and stored by a computer (the brain of the vision size and appearance inspection equipment). Simultaneously, signals are sent to the PLC to allow fully automated mechanical devices to reject products with defective features during the inspection process. Products whose data and images match are automatically transported to the good product exit by an automated transfer device.

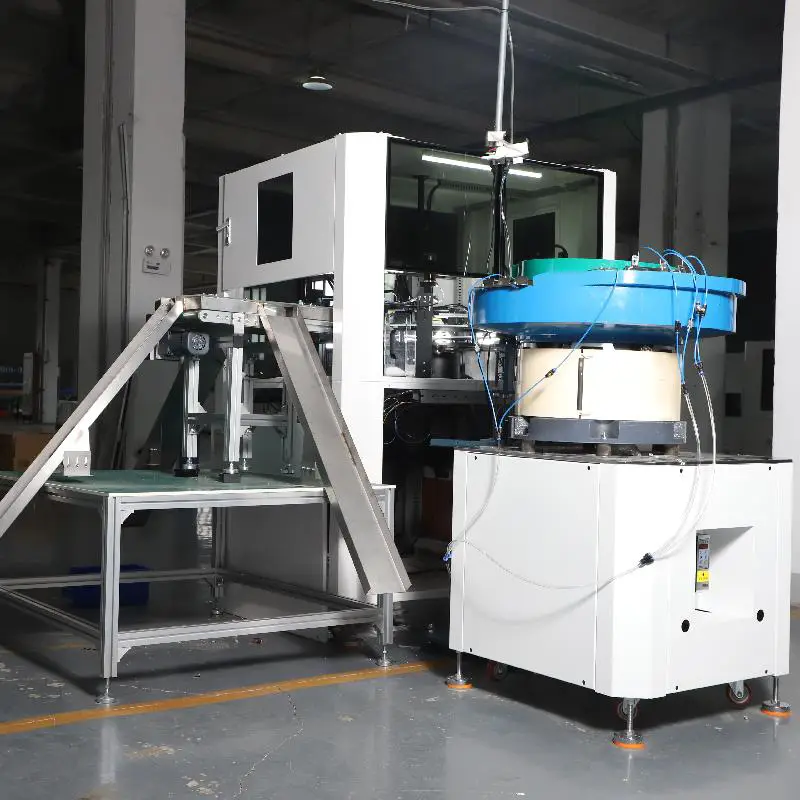

Inspection Line Details:

Turntalbe Glass Plate

Data Analysis Stage

Worktop

Image Capture Stage

Feeding Stage

Vibrating Plate

Implementation functions and requirements

Note: All the above inspection items must be clearly visible in the image to be inspected.

Inspection efficiency: No less than 300 pieces per minute (depending on the product feeding speed).

Equipment composition and main mechanisms:

Application Scope

The Precision Industrial Metal Parts Inspection Line is mainly designed for the full-process appearance and size inspection of various precision small industrial metal parts and precision hardware components. It can accurately measure and detect parameters such as length, width, height, hole diameter, spacing, etc. At the same time, it can precisely identify and determine defects such as surface dirt, missing materials, scratches, burrs, printing, gaps, and abnormal adhesion. The equipment is widely applicable to products such as hardware fasteners, precision structural components, small stamping parts, turning parts, and electronic metal accessories. It can directly connect with automated production lines, achieving integrated operation of loading, imaging, analysis, sorting, and discharging, significantly improving production and inspection efficiency, and meeting the requirements for high precision and high stability in industrial quality control.

Operating and Maintenance Notes

Before starting the equipment, ensure that the installation environment is flat and free from severe vibrations. The working area should be kept dry and clean to prevent dust and oil stains from affecting the lens and light source imaging. During daily use, regularly clean the glass turntable, lens surface, and dust on the light source to maintain clear imaging and prevent impurities from interfering with the detection results. The feeding vibration table should be adjusted according to the product specifications to avoid jamming or poor conveying, which may affect the detection efficiency.

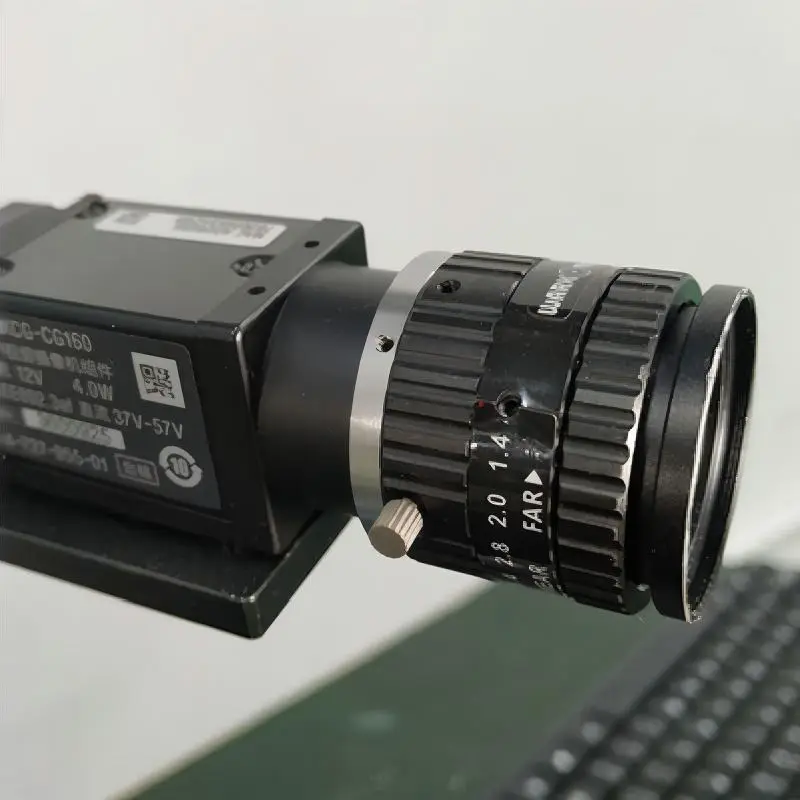

The core components of the equipment, such as Sony industrial cameras, telecentric lenses, Panasonic servo motors, and PLC control systems, are all of high-precision configuration. Unauthorized disassembly or adjustment is strictly prohibited. Operators must follow the standard procedures for turning on and off the equipment to avoid frequent power outages that may affect system stability. After long-term operation, regular checks on the circuits, air paths, and transmission components can be conducted to identify any abnormalities and stop the equipment for troubleshooting. The Precision Industrial Metal Parts Inspection Line is driven by LANCE INDUSTRIAL's exclusive control system and visual software. Regular data backups and software maintenance are carried out to effectively extend the service life and maintain long-term stable detection accuracy.
