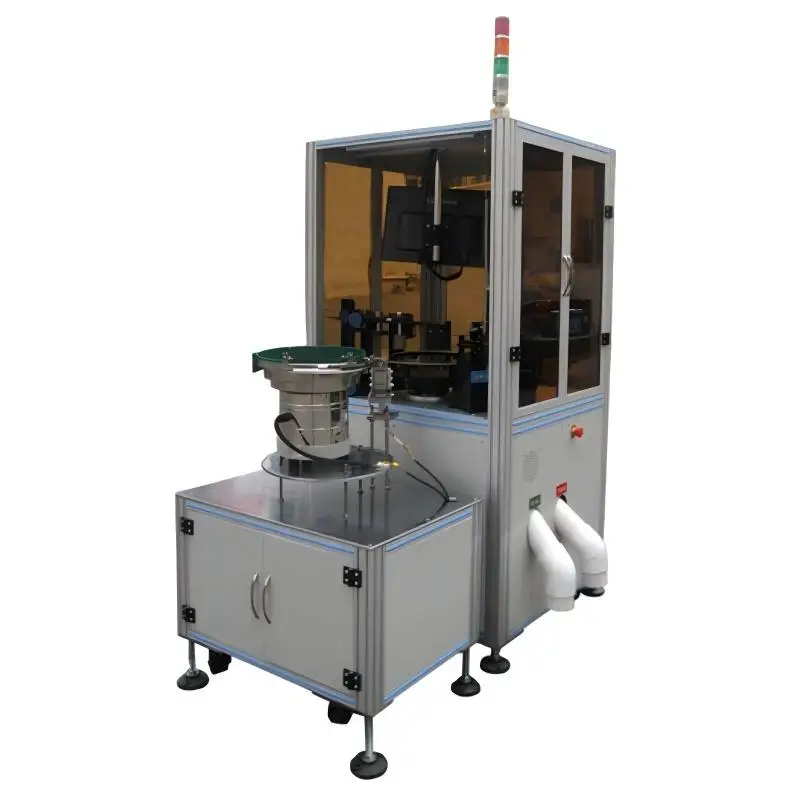

Bottle Cap Visual Counting and Packaging Machine

LANCE INDUSTRIAL is a professional manufacturer of visual inspection equipment with years of experience in software design, visual and image comparison technology, and industrial automation. Our advanced Bottle Cap visual counting and packaging machines can automatically locate the positional features on the appearance of various bottle caps. During the inspection process, if these appearance features do not match the image coordinates provided in the database, the product can be identified as defective or flawed.

Product Process

This bottle Cap visual counting and packaging machine is dedicated to inspecting and selecting defective bottle caps, helping clients improve testing efficiency and save labor costs.

‌Feeding Stage‌:

Components are loaded into the vibration bowl, which orients them into a single-file stream.

Alternative feeding methods include conveyor belts for fragile items or robotic arms for high-mix environments.

‌Transportation Stage‌:

A glass turntable or linear conveyor moves products under a high-resolution camera at a controlled speed.

Anti-vibration mounts ensure image clarity even in high-speed operations.

‌Image Capture Stage‌:

A 5MP industrial camera with adjustable focus captures multiple angles per product.

LED ring lights provide uniform illumination to eliminate shadows.

‌Data Analysis Stage‌:

Proprietary vision software compares images against CAD models or tolerance databases.

AI algorithms classify defects by severity (e.g., critical vs. cosmetic).

‌Defect Sorting Stage‌:

Pneumatic actuators, controlled by PLC logic, blow NG items into reject bins with pinpoint accuracy.OK products continue to packaging or assembly lines via chutes.

Testing Cases

The following are some inspection cases of bottle caps using our bottle Cap visual counting and packaging machine

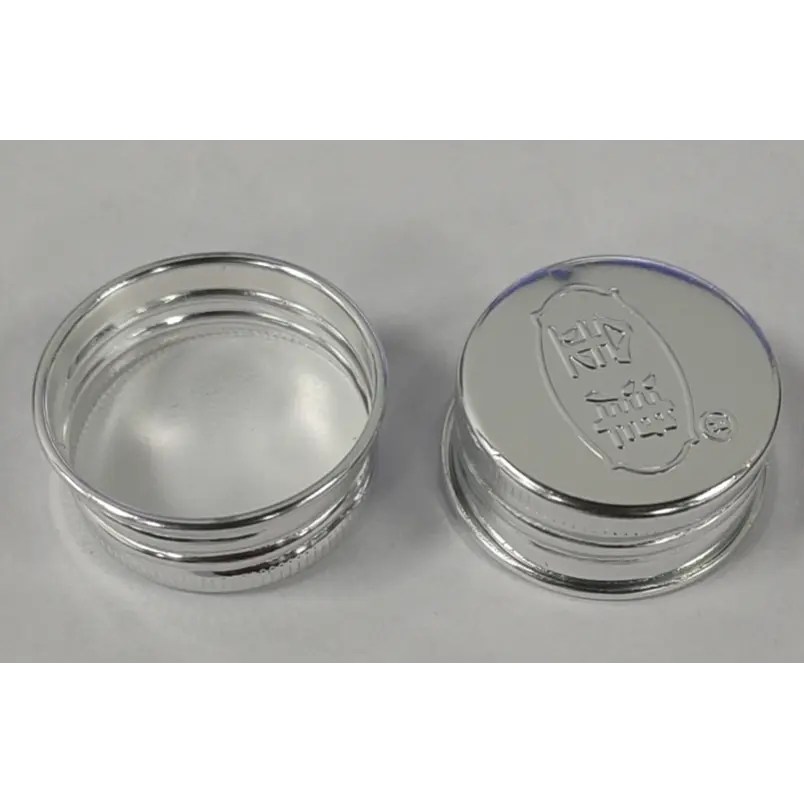

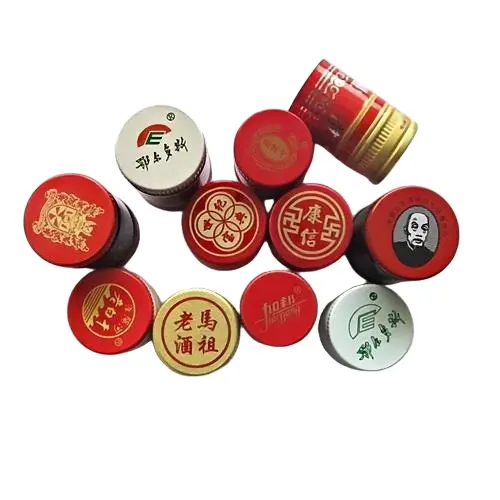

1. Sample photos:

2.Testing Content:

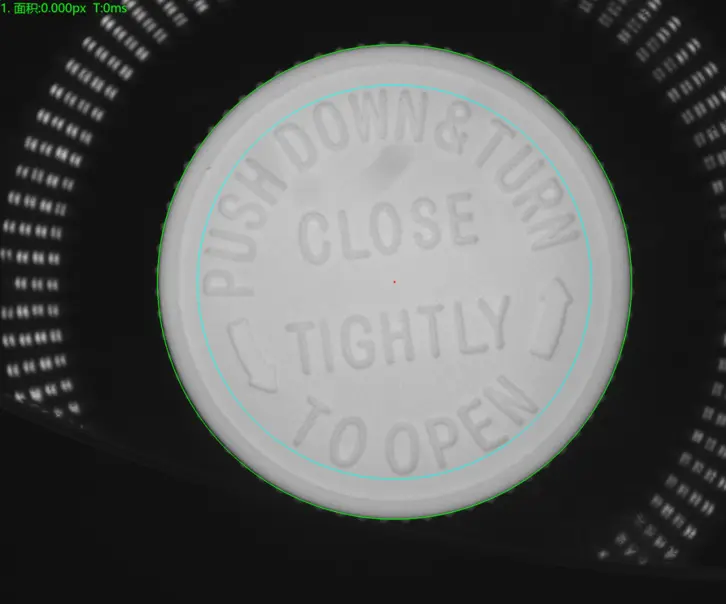

3.Sample test images:

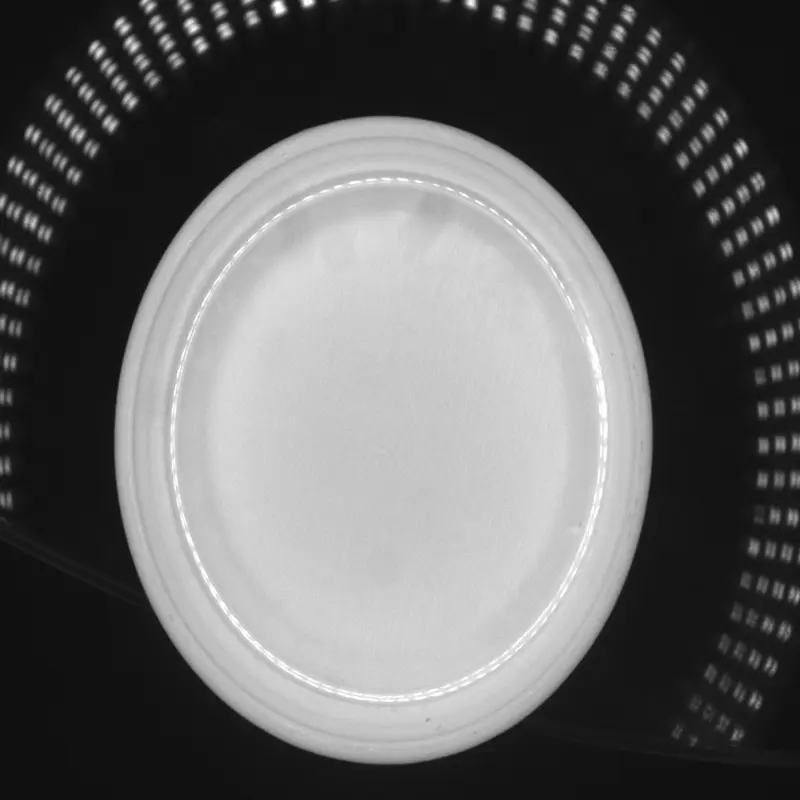

original

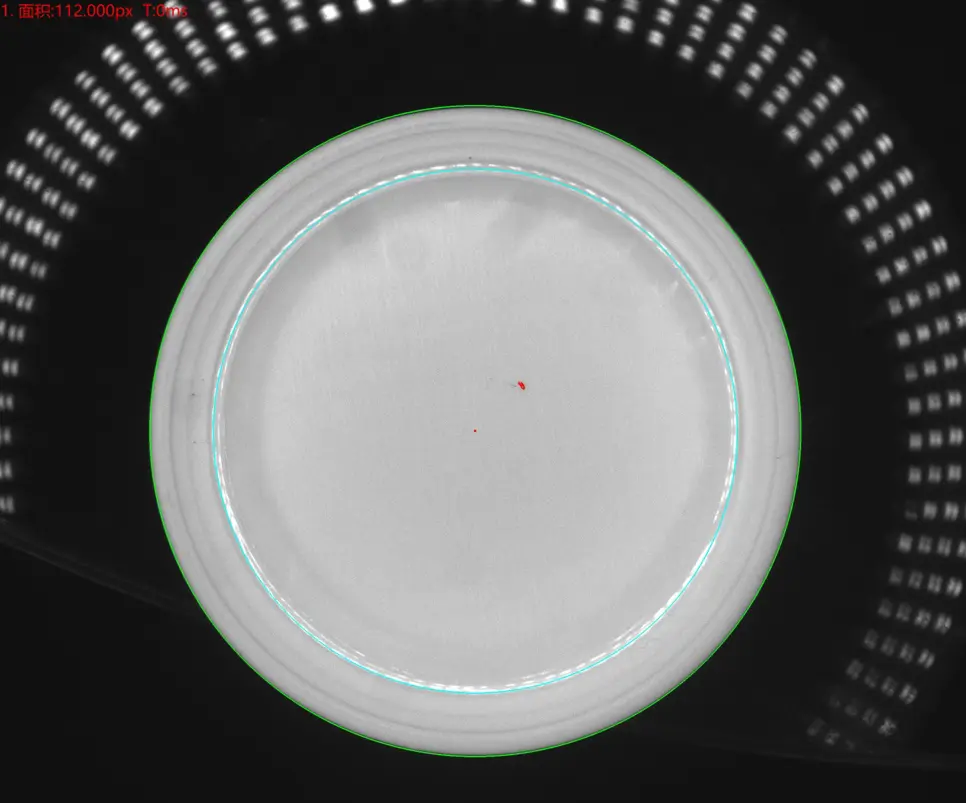

NG-black spots

OK

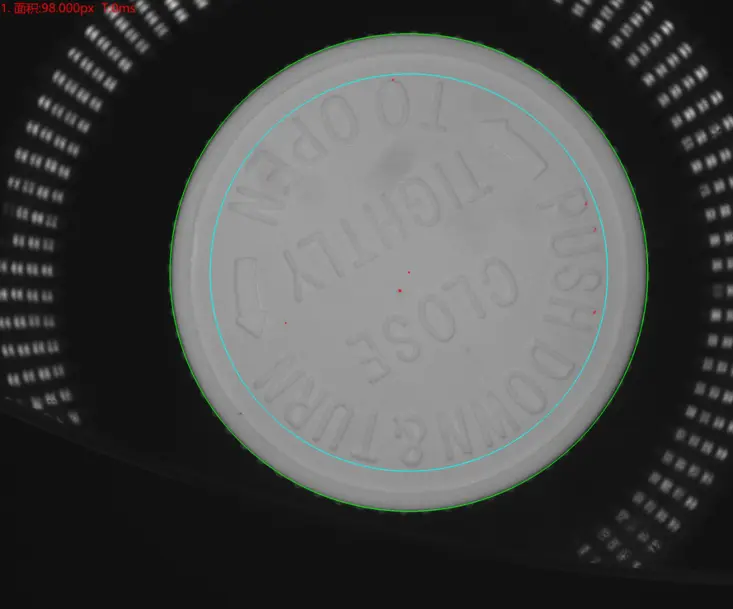

NG-black spots

OK

NG-black spots

Q&A

Question: What kinds of defects in the bottle caps does this equipment mainly detect, and what detection method does it use?

Answer: The Bottle Cap Visual Counting and Packaging Machine is mainly used for the defect detection, counting and packaging of bottle caps. It can accurately detect defects such as black spots, gaps, scratches, and threads on the surface of the bottle caps, all using direct light detection. At the same time, it can automatically identify the color, graphics and characters on the bottle caps, and determine whether they are qualified through database comparison to ensure that defective products are accurately removed.

Question: What are the feeding methods available and do they accommodate different types of bottle caps?

Answer: The equipment mainly uses a feeding vibration disc, which can arrange the bottle caps in a single row for transportation. Fragile bottle caps can be transported using a conveyor belt, and in multi-variety production scenarios, a mechanical arm can be used for feeding. The equipment is compatible with the detection of various bottle caps and can automatically locate the appearance position features of the bottle caps. It is also capable of meeting the counting and packaging requirements for different specifications of bottle caps.

Question: How stable is the operation of the detection process?

Answer: The detection process consists of five steps: loading, conveying, image acquisition, data analysis, and defect sorting. It operates fully automatically throughout. The equipment is equipped with anti-vibration devices, along with a 5 million pixel industrial camera and LED ring light source. Even during high-speed operation, it can ensure clear imaging. The PLC controls pneumatic actuators to precisely sort out defective products, making the operation stable and reliable.

Question: What practical benefits can it bring to the enterprise?

Answer: The Bottle Cap visual counting and packaging machine can significantly increase the efficiency of bottle cap inspection, replacing manual operations for the entire process of inspection, counting, sorting, and packaging, thereby saving labor costs. At the same time, it can eliminate human error in inspection, accurately eliminate defective products, and improve the qualification rate of products. As a professional manufacturer of visual inspection equipment, LANCE INDUSTRIAL guarantees the quality of its equipment and welcomes inquiries.
