Industrial Precision Metal Parts Automatic Visual Counting and Packaging Machines

NINGBO LANCEINDUSTRIAL CO.,LIMITED specializes in visual inspection of hardware parts and accessories many years, and has launched its latest Industrial Precision metal Parts Automatic visual counting and packaging machines.are used in a wide range of applications for precision hardware materials.

Send Inquiry

Product Description

NINGBO LANCEINDUSTRIAL CO.,LIMITED serves many hardware factories，our machine used in a wide range of applications for precision hardware materials, as a category of visual inspection equipment, Industrial Precision metal Parts Automatic visual counting and packaging machines can effectively help factories solve quality problems in precision hardware. And effectively inspect the appearance and dimensions of precision hardware, ensuring product consistency. They sort out defective products and simultaneously sort and package high-quality metal parts, effectively reducing production costs and alleviating labor shortages for businesses.

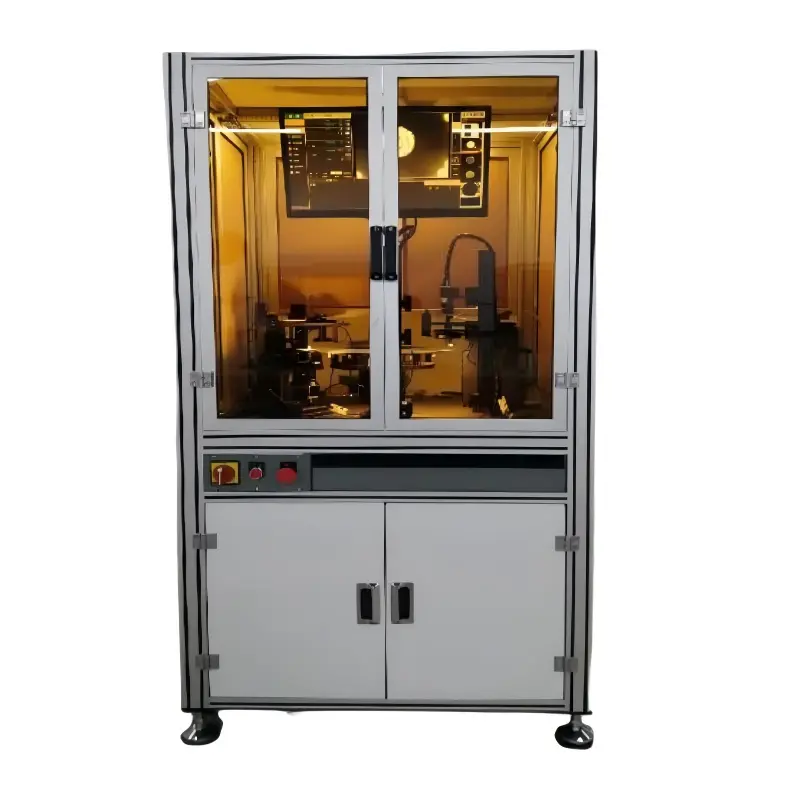

Industrial Precision Metal Parts Automatic Visual Counting And Packaging Machines

Product Parameter

Integrating Industrial Precision metal Parts Automatic visual counting and packaging machines into the production line requires sufficient space for installation. The ambient temperature must be between 0 and 50 degrees Celsius, and the humidity below 90% RH. Additionally, the equipment should be located in an area with minimal electronic interference.

Parameter	Specification
Inspection Precision	Up to 1μm (0.001mm) (configurable to 0.003mm for critical applications)
Inspection Speed	200-1200 pieces per minute (adjustable based on product size/complexity)
Accuracy Rate	99.99% (reduced false positives/negatives through AI learning algorithms)
Compatible Materials	Rubber, metal (stainless steel, aluminum), plastic, glass, and composite materials
Defect Types Detected	Length/height/diameter deviations, mixed materials, deformation, burrs, black spots, scratches
Feeding Mechanism	Vibration bowl, conveyor belt, or robotic arm (customizable)

Implementation functions and requirements

1. Actual image--Nut

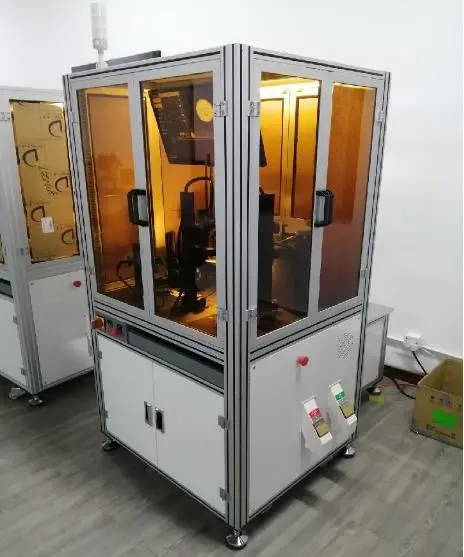

Industrial Precision Metal Parts Automatic Visual Counting And Packaging Machines

2.Test content

Serial number	Characteristics	Detection method	Is it detectable?
1	Missing processing	Positive light detection	yes
2	Copper tube hole deviation	Positive light detection	yes
3	Character Mixing	Positive light detection	yes
4	Top surface changes color	Positive light detection	yes
5	Top surface machining pinch marks	Positive light detection	yes
6	Damage to top surface blank	Positive light detection	yes
7	Inner tooth injury	Positive light detection	yes
8	Total length	Backlight detection	yes
9	Body crack	Positive light detection	yes
10	Surface depression	Positive light detection	yes
11	Side color change	Positive light detection	yes
12	Side machining pinch damage	Positive light detection	yes
13	Side blank damage	Positive light detection	yes
14	Dropped blocks	Positive light detection	yes
15	Skin	Positive light detection	yes
16	Slag	Positive light detection	yes
17	blank clamping printing	Positive light detection	yes
18	Oxide Scale	Positive light detection	yes
19	End face damage	Positive light detection	yes
20	Not full	Positive light detection	yes
21	Inner conical surface vibration marks	Positive light detection	yes
22	Rotten teeth	Positive light detection	yes
23	Toothless	Positive light detection	yes

3.Sample testing photos


Missing processing- Positive light detection

Hole deviation- Positive light detection

Character Mixing- Positive light detection

Top surface changes color-Positive light detection	Top surface machining pinch marks- Positive light detection

Damage to top surface blank- Positive light detection	Inner tooth injury - 360° orthogonal light detection of the inner wall

Inner conical surface vibration marks --Positive light detection	Surface depression-Positive light detection

Leakage trench--Positive light detection	Total length --Backlight detection

If you are experiencing concerns about product quality and would like to obtain Industrial Precision Metal Parts Automatic visual counting and packaging machines for product appearance testing, please feel free to contact us.
