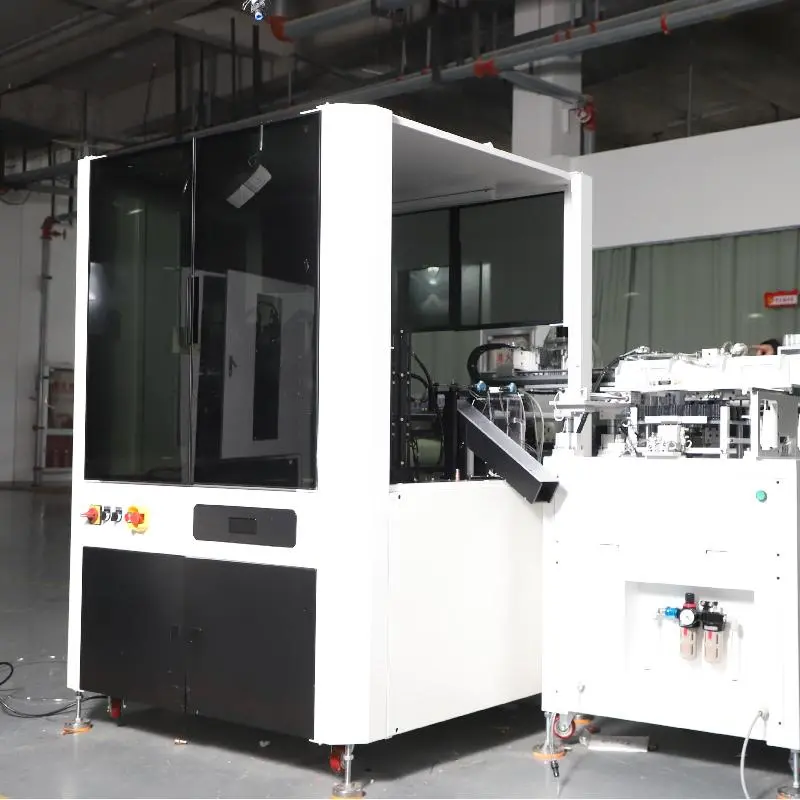

Automobile Electronic Components Defect Detection System

NINGBO LANCE INDUSTRIAL CO., LIMITED, as a long-established vision inspection brand, has accumulated extensive experience in the industry. Their standardized automotive parts dimensional and appearance inspection equipment effectively helps companies requiring automotive parts inspection to improve inspection speed, product quality, and ensure zero returns on every batch of products leaving the factory. our Automobile Electronic Components Defect Detection System is a vision inspection device specifically developed for capacitor components, with an inspection efficiency of 400-600 pieces/minute and an accuracy rate of 99.9%. It can detect damage, cracks, and dirt on electronic components, replacing manual inspection, improving production efficiency, and reducing production costs.

System Composition

The Automobile Electronic Components Defect Detection System can be divided into seven major systems: machine system, imaging system, light source system, computing system, feeding system, rejection system, and network signal transmission system. These seven major systems involve multiple disciplines, so a CCD automobile parts size and appearance inspection device is a device that integrates the wisdom of many engineers. Therefore, CCD automobile parts size and appearance inspection devices are also referred to by many companies as intelligent industrial quality inspection robots.

Solution for CD Inductor Electronic Components

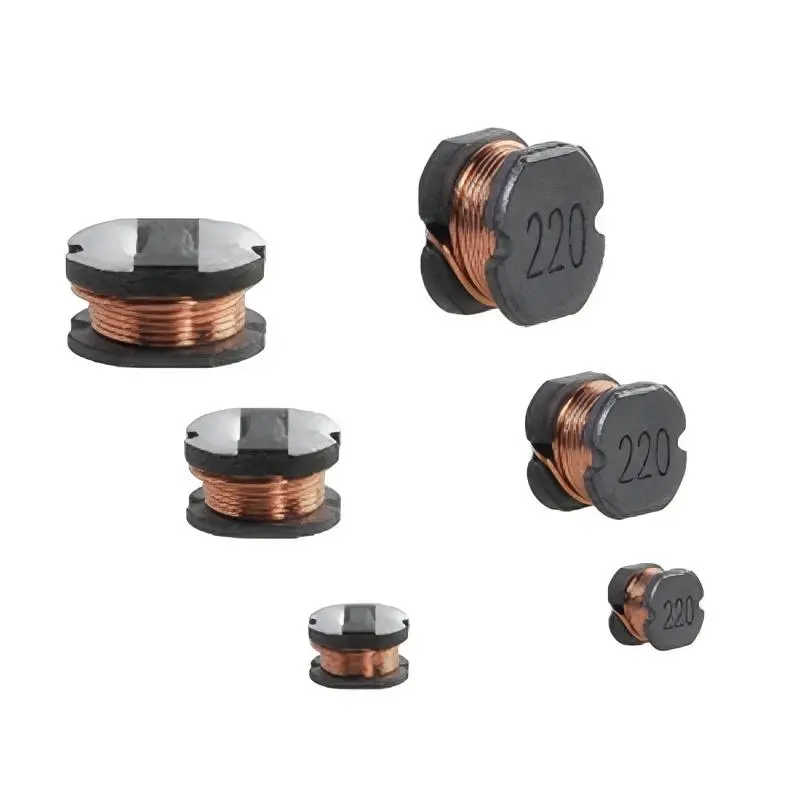

1.Sample picture:

2.Testing content and requirements

Detect the area:

sample : 8mm in length, 8.4mm in width, and 4mm in height.

Test content:

1: Bottom positive light detection

2: Top positive light detection

3: Side front light detection

4: Reverse side front light detection

5: Side front light detection

6: Reverse side front light detection

Note: All of the above testing items must be clearly visible in the image to be tested.

Inspection efficiency: 150-200 pieces per minute (depending on sample feeding speed).

The work is divided into sections: the testing steps are further subdivided according to the content to be tested.

3. Sample test images:

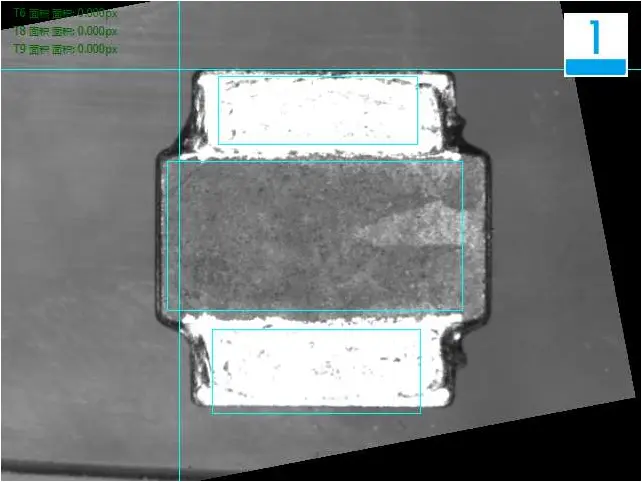

Bottom positive light detection -OK

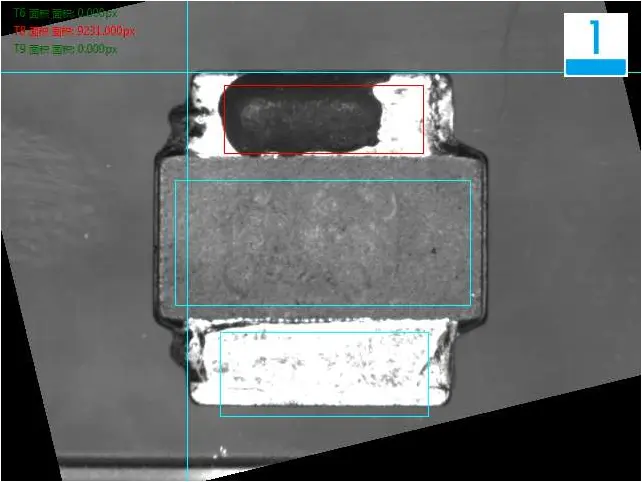

Bottom positive light detection -NG

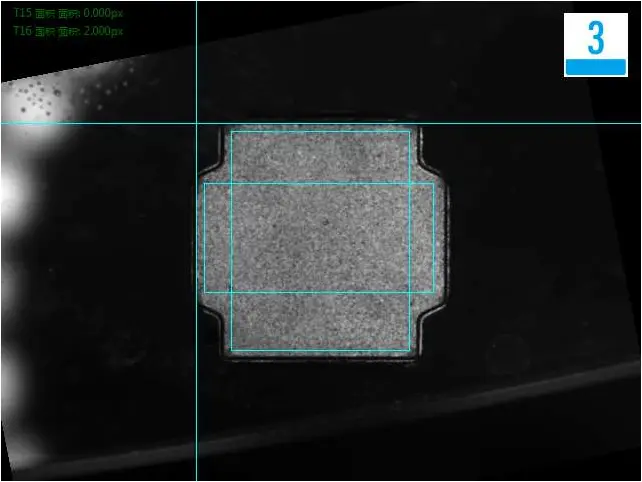

Top positive light detection -OK

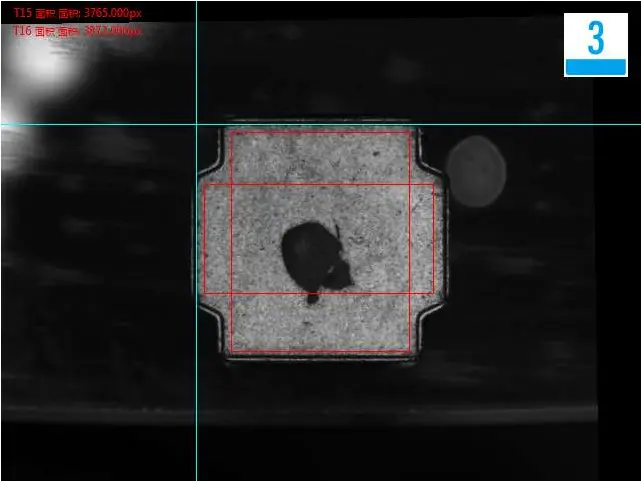

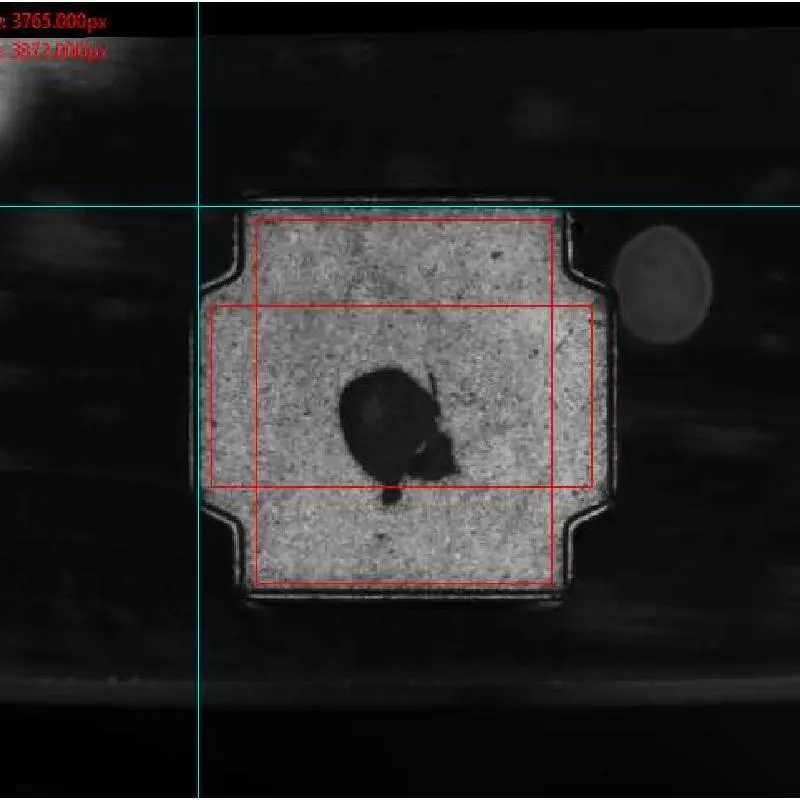

Top positive light detection -NG

Side front light detection

Side front light detection-NG

If you are interested in our Automobile Electronic Components Defect Detection System or if you have electronic components that need testing, please feel free to contact us and send us your samples. NINGBO LANCE INDUSTRIAL CO., LIMITED will provide you with an accurate solution and the right machine for your needs.
