Automotive Commutator Defect Detection System

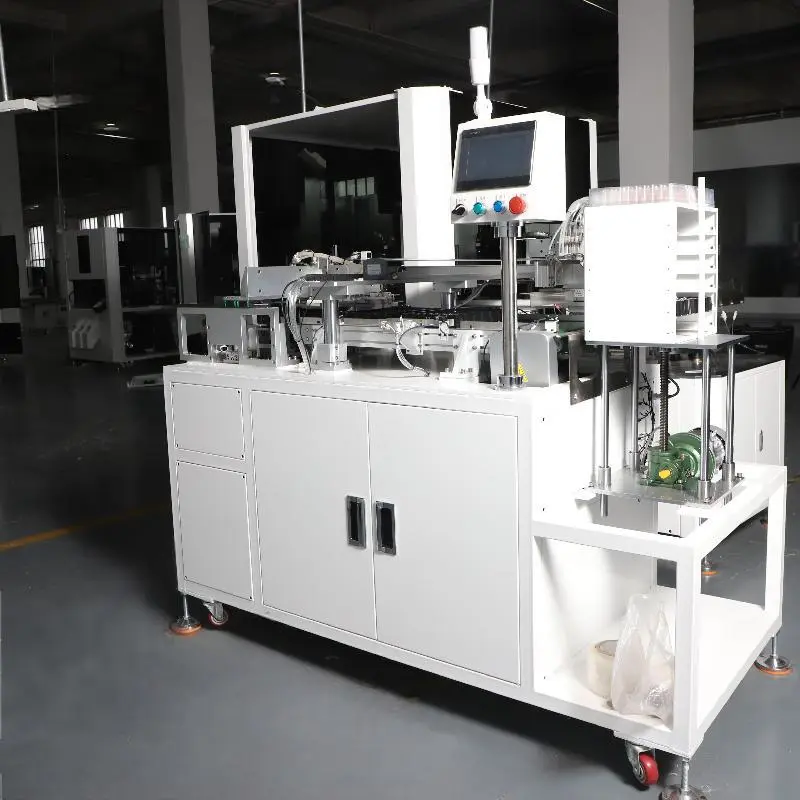

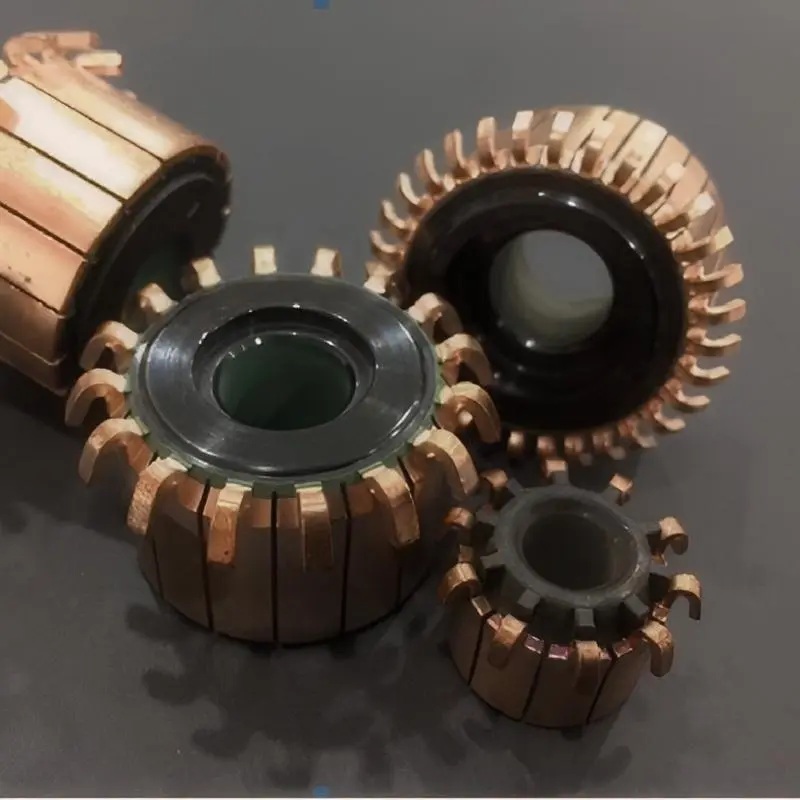

Commutators are essential components in automobiles for controlling the direction of DC motors and generators, and their performance directly affects key functions such as the vehicle's power train and steering assist. The Automotive Commutator Defect Detection System can inspect commutators by size and appearance, eliminating defective parts, improving the quality of automotive components, and further enhancing vehicle safety. LANCE INDUSTRIAL's inspection speed reaches 20-50 units/min, adjustable according to the feeding speed of the loading mechanism. It can detect dimensional issues such as length, width, height, and angle of automotive motor commutators, as well as external defects such as deformation, dirt, missing materials, scratches, burrs, and markings. It can also locate and detect missing or blocked holes. Compared to manual inspection, it offers higher standards, greater precision, and faster speed.

Implementation functions and requirements

1. inspection image:

2. Detection principle:

The Automotive commutator Defect Detection System uses high-precision imaging and image processing to identify commutator dimensional deviations and surface defects with a detection accuracy of up to 0.01mm. It improves product quality consistency, reduces human error, and is suitable for factory inspection in mass production.

3.Testing Content:

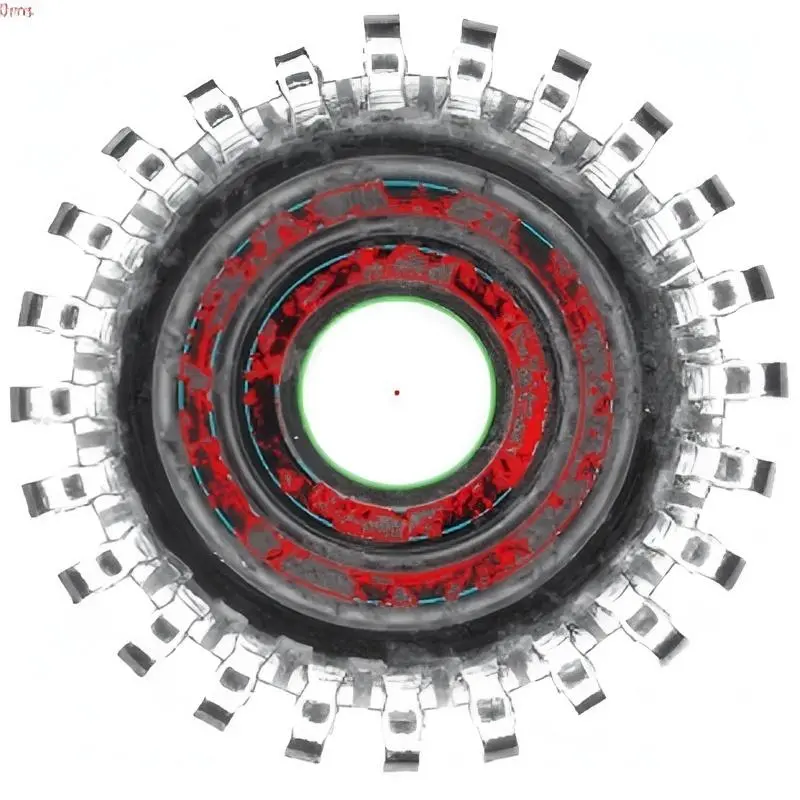

4.Test result image:

Our Automotive commutator Defect Detection System uses image acquisition, image transmission, product positioning, image digitization, data transmission, database calculation, data signals, PLC signal reception, and instruction mechanical devices to reject defective products during commutator detection.

Main technical features

LANCE INDUSTRIAL's user interface is clear and easy to operate; simple settings are all it takes for automatic detection. The Automotive commutator Defect Detection System's software and algorithms are entirely independently developed. The system is highly targeted, allowing for selective detection of localized areas, increasing detection flexibility. Its professionally designed light source ensures clear and uniform imaging, guaranteeing task completion. The system is easy to install, facilitating operation, maintenance, and expansion. Furthermore, its high reliability and stable operation make it suitable for various field conditions. Therefore, it is highly favored and praised by partners!

Q&A

Question: What industry pain points can the Automotive Commutator Defect Detection System address?

Answer: This device is specifically designed for automotive commutator inspection. It can detect the size and appearance defects of commutators in automotive DC motors and generators, addressing the issues of low standards, poor accuracy, and low efficiency in manual inspection, thereby helping to improve the quality of automotive components and ensuring the safety of key functions such as vehicle power transmission and steering assistance.

Question: How accurate and fast is the equipment's detection?

Answer: The equipment's detection accuracy is up to 0.01mm. The detection speed is 20-50 pieces per minute, which can be adjusted according to the feeding speed. It can detect the length, width, height, and angle of the commutator, as well as appearance defects such as deformation, dirtiness, and missing materials. It can also locate and detect missing holes and blocked holes. At the same time, it can identify various problems such as surface scratches, oxidation, and mica damage. The detection is comprehensive and precise.

Question: What are the detection methods for the equipment?

Answer: The equipment employs multiple detection methods. For surface dirt on the top surface, top direct light is used; for scratches, protrusions, etc., side light is employed; for hook width, bottom direct light or 45-degree inclined direct light is used; for internal hole-related defects, top backlight or 45-degree inclined direct light is used. Professional-designed light sources are equipped to ensure clear and uniform imaging. Combined with high-precision imaging and image processing technology, the detection results are guaranteed to be reliable.

Question: Is the operation and installation complex?

Answer: The equipment is easy to operate. The interface is clear. Automatic detection can be achieved through simple settings. The installation is convenient and it is easy to perform subsequent operations, maintenance and expansion. The software and algorithms are all independently developed by us. They are highly targeted and allow for selective detection of specific areas. They are highly flexible and operate stably with strong reliability, making them suitable for large-scale production scenarios in factories.
