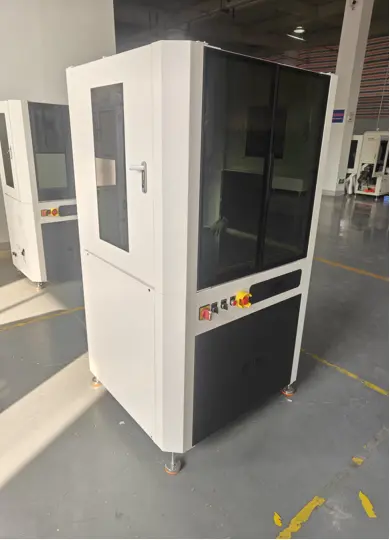

Medical Rubber Stopper Optical Sorting Machine

NINGBO LANCEINDUSTRIAL CO.,LIMITED provides product quality testing solutions to multiple pharmaceutical companies, among which the Medical rubber stopper Optical Sorting Machine integrates high-speed imaging and real-time analysis to achieve fully automated leak detection. This helped clients achieve 100% detection coverage, eliminate human error, and significantly reduce compliance risks. This case highlights the irreplaceable role of artificial intelligence in critical safety areas.

Implementation functions and requirements

Medical rubber stopper Optical Sorting Machine adopt an AI-driven automated optical inspection (AOI) system that combines deep learning algorithms with high-precision optical sensors to achieve pixel-level defect identification.

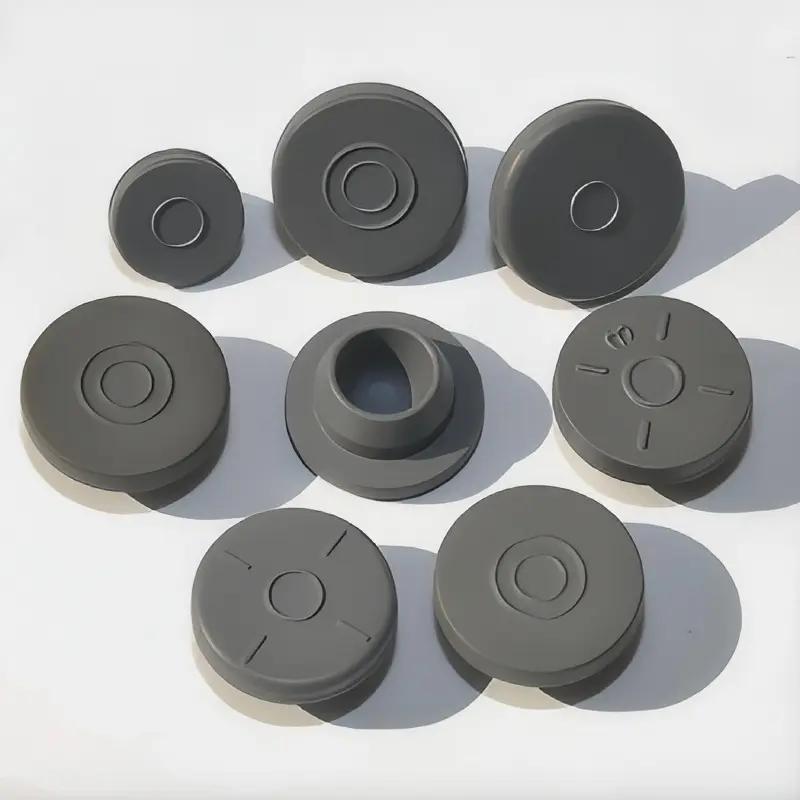

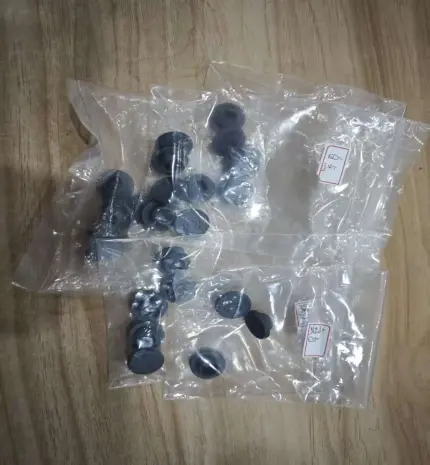

1.Sample‌

2. Requirements

Medical rubber stopper Optical Sorting Machine integrating high-speed imaging and real-time analysis for fully automated leak detection.

-- Automatic feeding

--Automatic material delivery

-- Automatic transfer

--Automatic detection of product appearance and dimensions

--Automatic sorting

3.Test content

4. Sample Testing Pictures

NG-damage

NG-damage

NG-damage

NG-damage

NG-Incomplete

G-White spots

NG-Bulge

NG-Bubble

Maintenance and Usage Recommendations

To ensure the stable operation of the Medical rubber stopper Optical Sorting Machine, extend the equipment's service life, guarantee the detection accuracy and efficiency, and fully utilize the equipment's advantages in automated detection, based on LANCE INDUSTRIAL's many years of industry experience, the following usage and maintenance suggestions are formulated to help standardize operations and reduce equipment wear and tear.

During daily use, it is necessary to ensure that the equipment is placed on a flat, dry, and free from severe vibration site. Avoid exposure to moisture, dust, and corrosive gases to prevent damage to the internal optical sensors and imaging components. Before testing, check that the surface of the medical rubber stopper to be tested is free of excess impurities and oil stains. Avoid impurities from interfering with imaging to ensure that defects are clearly visible during positive light detection and to guarantee the accuracy of the test results.

Regularly maintain the core components. Daily clean the residual rubber debris on the vibration disc, glass turntable and conveying channel to prevent material jams from affecting the feeding and conveying efficiency. Check the industrial camera lens and LED light source weekly. Use a dedicated cleaning cloth to remove dust to ensure clear imaging. Also, check the lens focal length and adjust/calibrate it in time.

Regularly inspect the pneumatic actuators, transmission components and line connections of the equipment. Address any looseness or wear promptly. Conduct a comprehensive debugging of the equipment every month, calibrate and test the accuracy. If any abnormalities occur during equipment operation, immediately stop the machine for troubleshooting. Do not disassemble it without authorization. You can contact the LANCE INDUSTRIAL after-sales team for professional technical support. Regularly keep maintenance records to ensure the equipment operates stably for a long time and meets the compliance quality inspection requirements of pharmaceutical enterprises.
