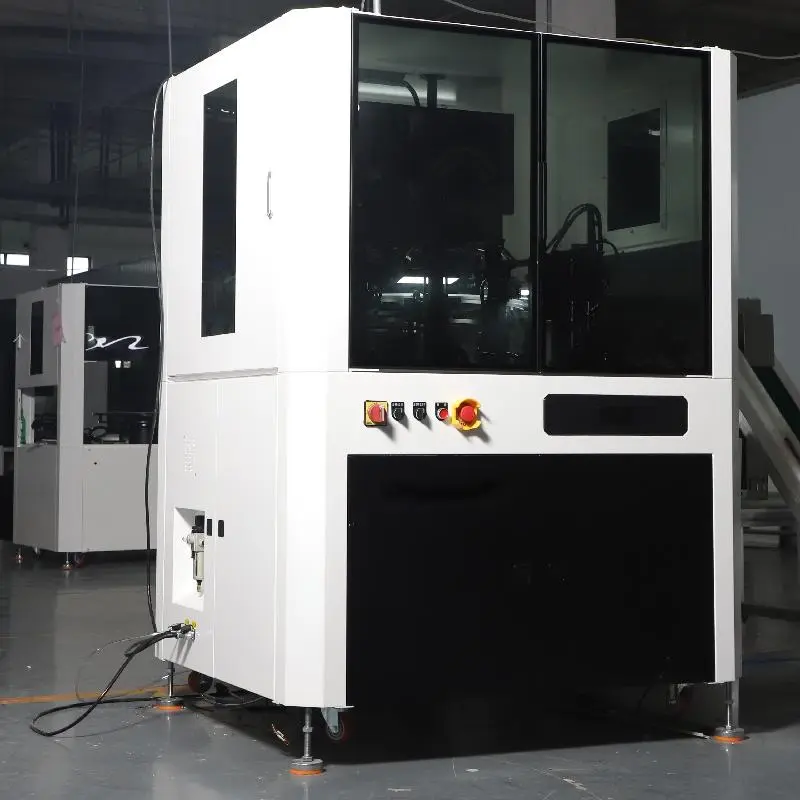

Medicine Bottle Optical Sorting Machine

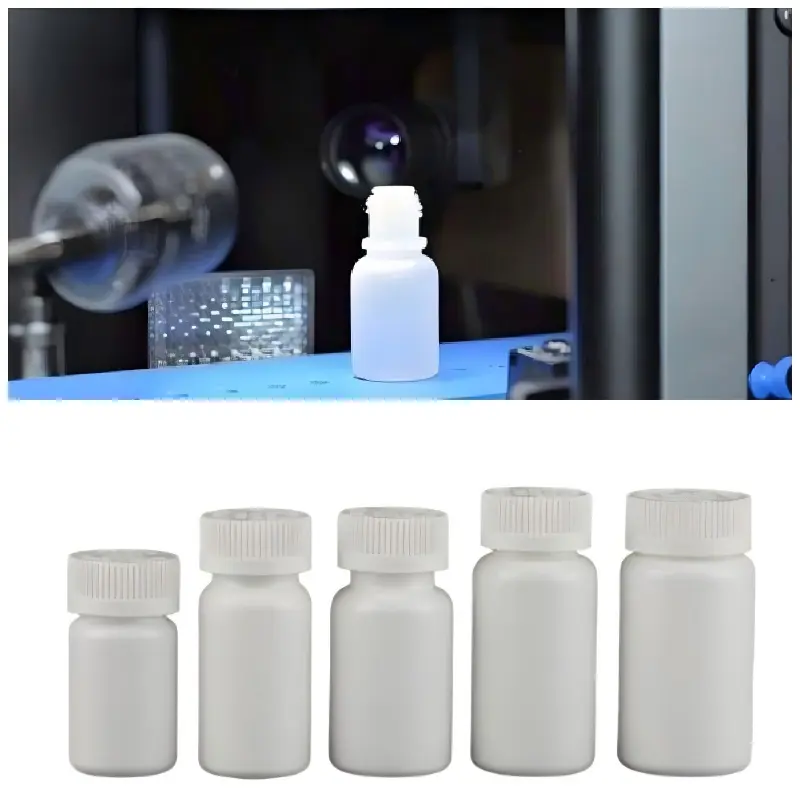

NINGBO LANCEINDUSTRIAL CO.,LIMITED has been committed to improving machine vision and algorithms, resulting in the development of our Medical Drugs Devices and Consumables Optical Sorting Machine. This machine helps many pharmaceutical manufacturers achieve unmanned inspection and higher efficiency. The Medicine Bottle Optical Sorting Machine significantly improves the quality of finished medicine bottles, reduces defects, increases customer satisfaction, drastically reduces labor costs, lowers pharmaceutical company expenses, and significantly improves production efficiency. This shortens the production cycle, increases customer satisfaction, and secures more orders. Our Medicine Bottle Optical Sorting Machine uses a vibratory feeder, applies 360° AI vision inspection software, and is equipped with 12 CCD industrial cameras. According to customer requirements, it can inspect various medicine bottle products for key dimensions such as height and bottom thickness, as well as surface defects such as burrs, adhesive residue, peeling, black spots, dents, and deformation. The inspection speed is 200pcs/min, and the inspection accuracy is ±0.01mm

Equipment Composition

The Medicine Bottle Optical Sorting Machine integrates mechanical, optical, electrical, and motion control technologies.

Advantages：

The Medicine Bottle Optical Sorting Machine boasts high production efficiency and can operate continuously 24 hours a day, unaffected by subjective emotions, fatigue, or other objective factors. As long as the parameters are set, it can guarantee consistent testing efficiency and accuracy. During the testing process, it will not cause contact damage to the surface or structure of the medicine bottle. Furthermore, the machine has low technical requirements for operators, and it can automatically generate data reports after measurement, eliminating the need for manual addition.

Q&A

Question: How is the accuracy and speed performance of this equipment?

Answer: The detection accuracy of the equipment is ±0.01mm, and the detection speed is 200 pieces per minute. It is equipped with 12 sets of CCD industrial cameras and a 360° visual inspection system. It can precisely detect key dimensions such as the height of the medicine bottle and the thickness of the bottle bottom, and simultaneously identify surface defects such as burrs, glue stains, peeling, black spots, depressions, and deformations. It fully meets the strict quality inspection requirements of pharmaceutical enterprises for the appearance and size of medicine bottles.

Question: What core components does the Medicine Bottle Optical Sorting Machine consist of?

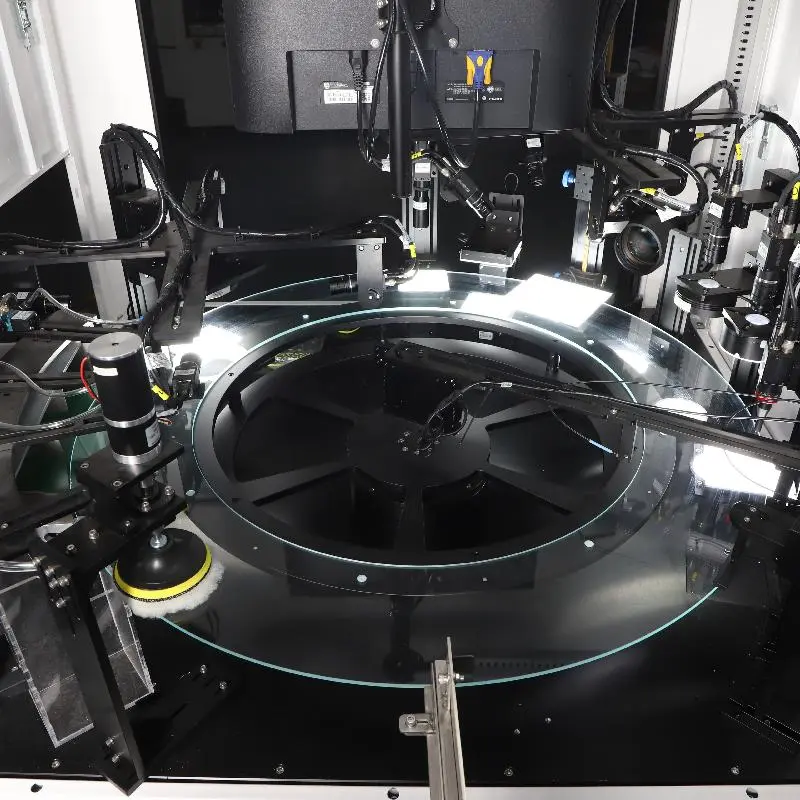

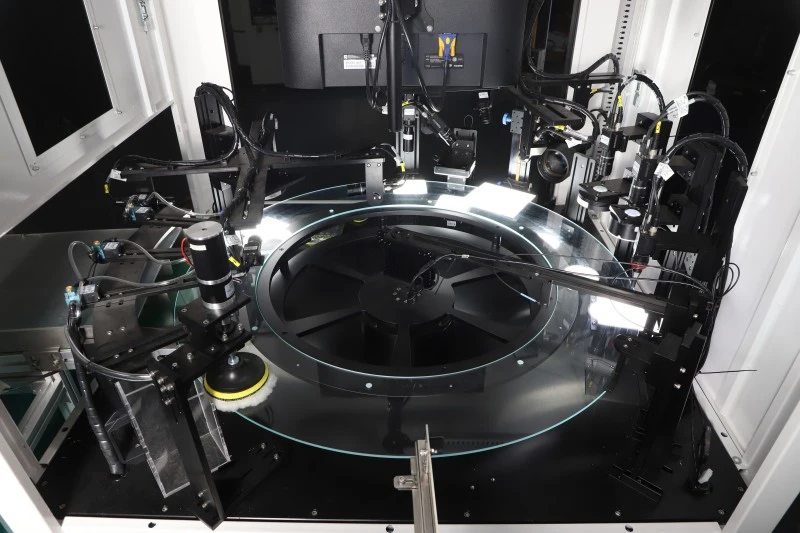

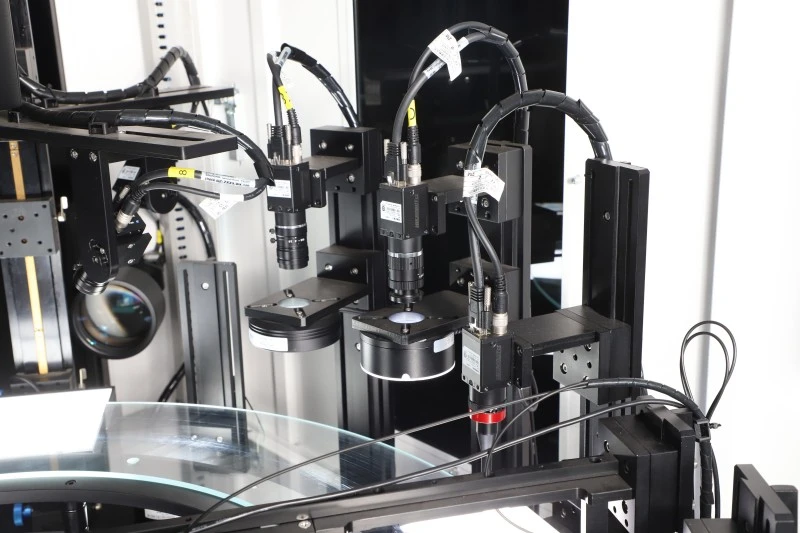

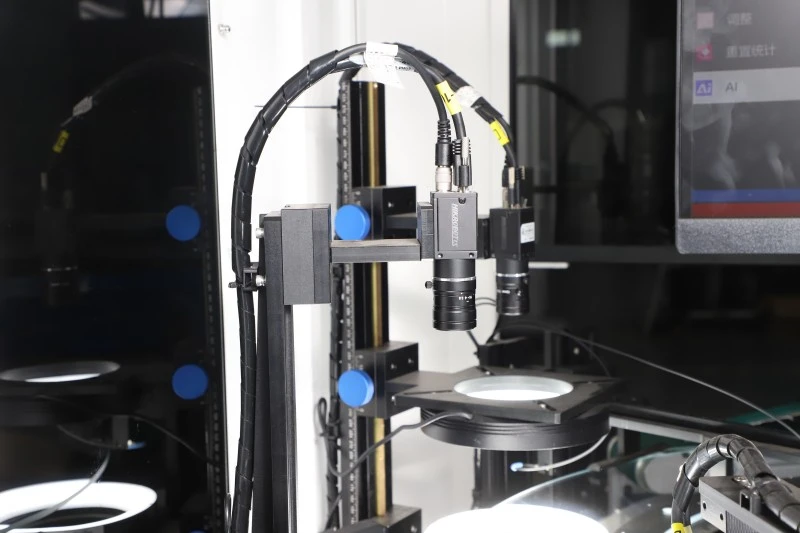

Answer: The equipment integrates mechanical, optical, electrical and motion control technologies. The core components include dedicated detection software, industrial computer, 19-inch monitor, industrial camera and lens, solenoid valve, reducer, vibration bin, vibration plate, direct vibration, controller and other complete feeding equipment. The structure is complete and the operation is stable.

Question: What are the prominent advantages of equipment detection?

Answer: The equipment can operate continuously without human intervention for 24 hours, unaffected by fatigue or emotions of the operators. The detection efficiency and accuracy remain consistent. The detection process is non-contact, which will not damage the surface and structure of the medicine bottles, and has low technical requirements for the operators. After the detection, data reports can be automatically generated, eliminating the need for manual statistics, significantly reducing the labor costs and management costs of the enterprise.

Question: Can it meet the personalized testing requirements of pharmaceutical enterprises?

Answer: We have a professional design team. Based on the specific bottle specifications and testing standards of the customers, we can flexibly adjust the equipment parameters and testing plans to precisely match the quality inspection requirements of different types of bottles, helping enterprises achieve the unmanned and standardized upgrade of bottle appearance quality inspection.
