Euro-standard CCD Automatic Visual Inspection Machine

LANCE INDUSTRIAL is a professional Euro-standard CCD Automatic visual inspection machine manufacturer and supplier in China.We can provide industrial inspection solutions for European customers and address customer’s production pain points.

Send Inquiry

Product Description

NINGBO LANCEINDUSTRIAL CO.,LIMITED, is a manufacturer，supplier and innovators of industrial solutions in China, proudly presents its advanted EURO-standard CCD automatic visual inspection machine – a high-precision automated quality control system tailored for European clients. This cutting-edge solution integrates advanced machine vision technology with robust mechanical automation to inspect dimensions, surface defects, and material integrity across diverse industrial production. Designed to meet European standards with CE approval.

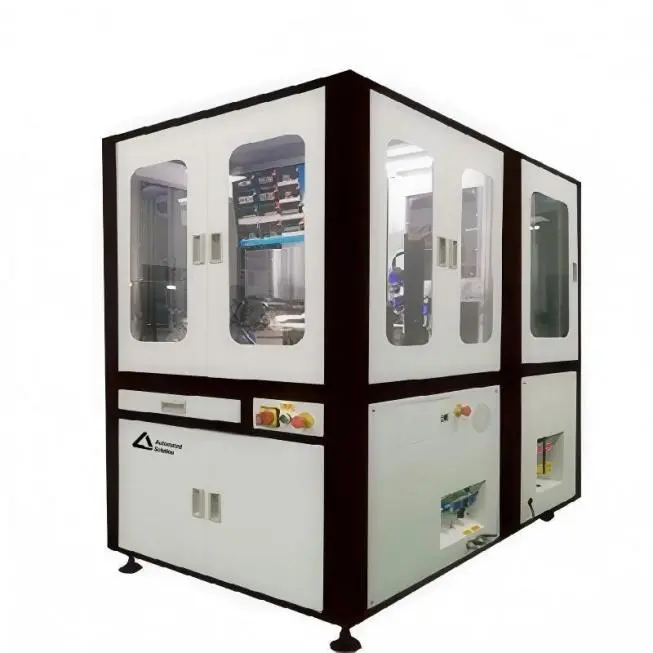

Euro Standard Ccd Automatic Visual Inspection Machine

Product Parameter (Specification)

Our EURO-standard CCD automatic visual inspection machine operate without human assistance and run stably for months, reducing production costs while maintaining product quality. Furthermore, we offer reliable technical support to achieve intelligent automation.

Parameter	Specification
Inspection Precision	Up to 1μm (0.001mm) (configurable to 0.003mm for critical applications)
Inspection Speed	200-1200 pieces per minute (adjustable based on product size/complexity)
Accuracy Rate	99.99% (reduced false positives/negatives through AI learning algorithms)
Compatible Materials	Rubber, metal (stainless steel, aluminum), plastic, glass, and composite materials

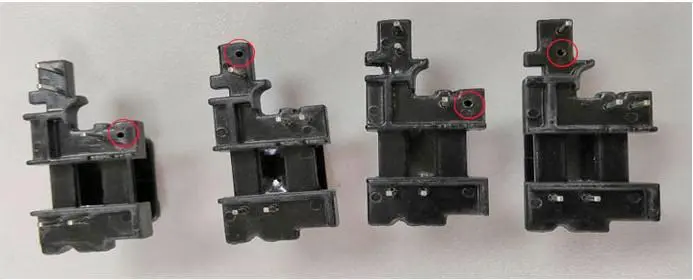

Defect Types Detected	Length/height/diameter deviations, mixed materials, deformation, burrs, black spots, scratches
Feeding Mechanism	Vibration bowl, conveyor belt, or robotic arm (customizable)
Power Supply	220V AC, 50/60Hz (compatible with global standards)
Dimensions (L×W×H)	800mm × 600mm × 1200mm (standard; customizable for space constraints)
Weight	~150kg (varies with configuration)

Applications

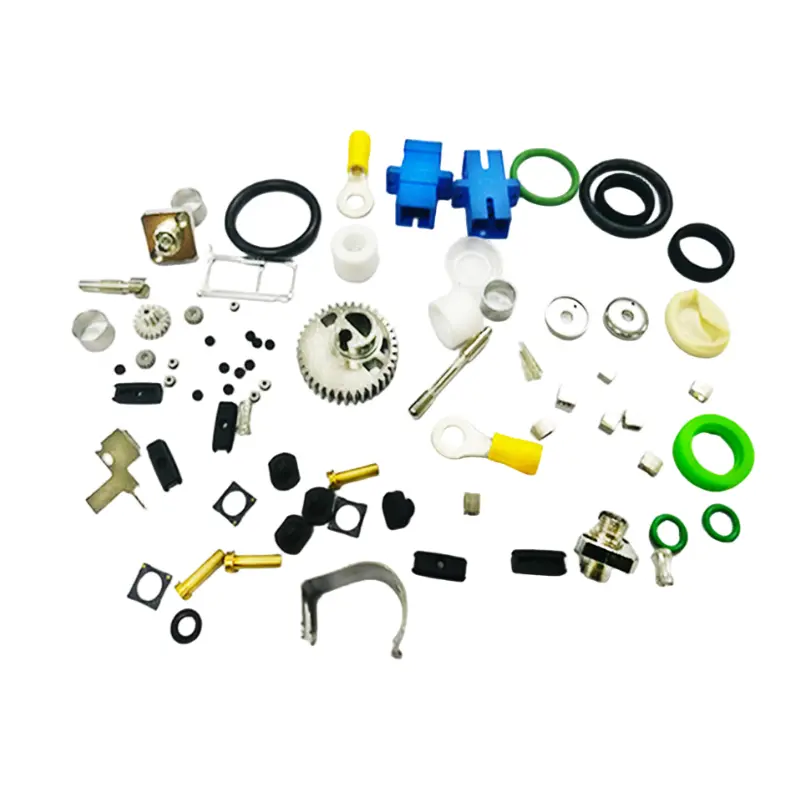

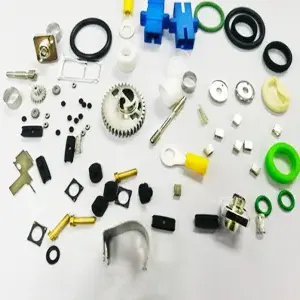

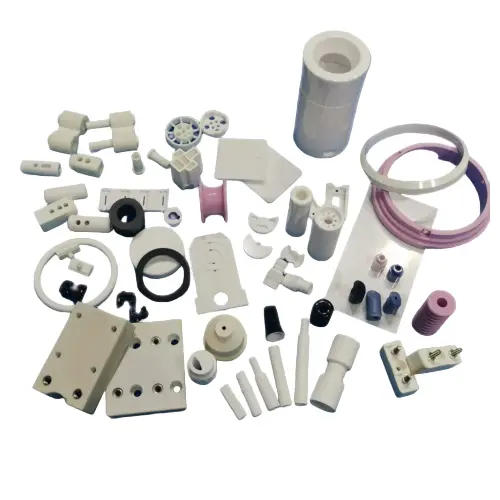

Our EURO-standard CCD automatic visual inspection machine can inspect screws, nuts, lathe parts, stamped parts, injection molded parts, cold-forged parts, electronic components, rubber and silicone parts, etc.If you are interested in our machines, please feel free to contact us.

research and invention materials

electronic components

Precision Hardware

rubber seal ring

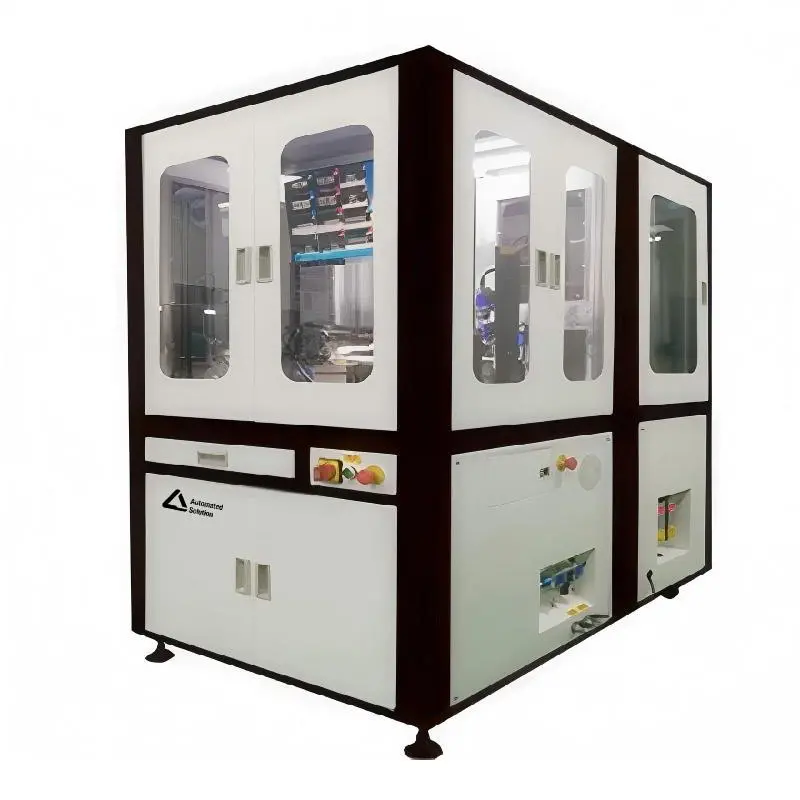

Details of Euro-standard CCD Automatic visual inspection machine

‌Feeding Stage‌:

Components are inserted into a vibratory feeder, which arranges them into a single-row flow.

Other feeding methods include conveyor belts for fragile items or robotic arms for mixed material environments.

‌Transportation Stage‌:

Glass turntables or straight-line pipe machines guide the product pipeline to its destination below the endpoint at a controlled speed.

‌Image Capture Stage‌:

Each unit has 50 industrial cameras with adjustable focus, capable of capturing product images from multiple angles.LED ring lights provide uniform illumination and eliminate shadows.

‌Data Analysis Stage‌:

Proprietary vision software compares images against CAD models or tolerance databases.

Artificial intelligence algorithms categorize defects based on their severity.

‌Defect Sorting Stage‌:

PLC-controlled pneumatic actuators accurately blow defective products into a scrap bin. Qualified products then continue through chutes into the packaging or assembly line.
