Copper Tube Automatic Vision Inspection Equipment

NINGBO LANCEINDUSTRIAL CO.,LIMITED is an automated inspection equipment manufacturer in China, and we have been committed to the production of visual inspection equipment.we have received many requests from refrigeration manufacturers for the inspection and screening of copper tubes. Our specially developed Copper Tube Automatic Vision Inspection Equipment meets most of the inspection requirements for copper tubes

Send Inquiry

Product Description

LANCE INDUSTRIAL support the non-standard customized production of automated size and appearance inspection equipment to meet the inspection (screening) needs of different products.

Copper Tube Automatic Vision Inspection Equipment mainly includes inspection of size, color, defects, stains, etc., improving production and inspection efficiency.

Product Parameter

Parameter	Specification
Inspection Precision	Up to 1μm (0.001mm) (configurable to 0.003mm for critical applications)
Inspection Speed	200-1200 pieces per minute (adjustable based on product size/complexity)
Accuracy Rate	99.99% (reduced false positives/negatives through AI learning algorithms)
Compatible Materials	Rubber, metal (stainless steel, aluminum), plastic, glass, and composite materials
Defect Types Detected	Length/height/diameter deviations, mixed materials, deformation, burrs, black spots, scratches

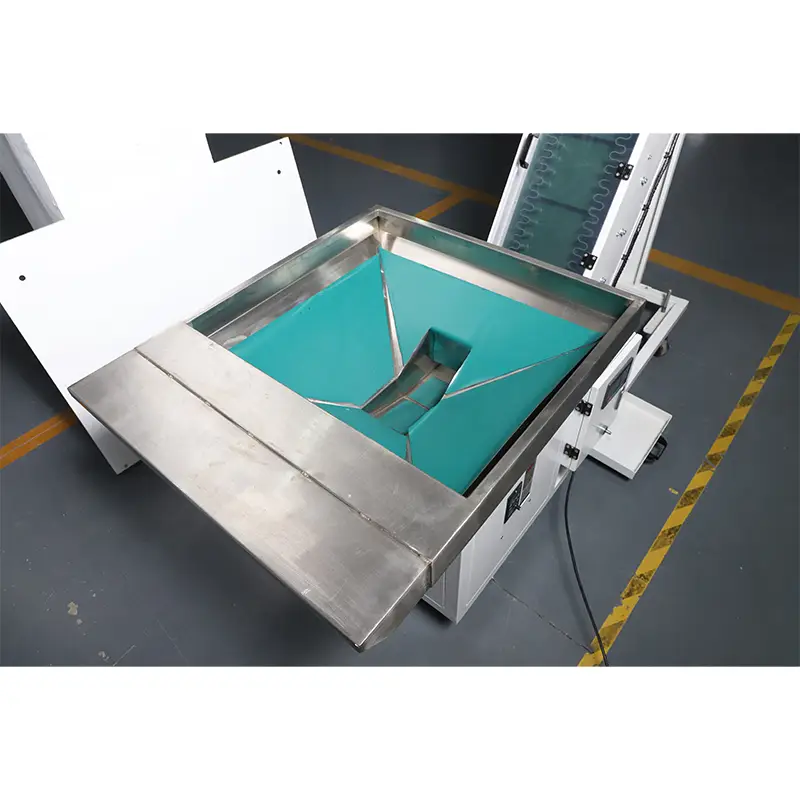

Feeding Mechanism	Vibration bowl, conveyor belt, or robotic arm (customizable)
Power Supply	220V AC, 50/60Hz (compatible with global standards)
Dimensions (L×W×H)	800mm × 600mm × 1200mm (standard; customizable for space constraints)
Weight	~150kg (varies with configuration)

Testing Cases

1.Sample image：

Copper Tube Automatic Vision Inspection Equipment

2.inspection content:‌

Serial number	characteristics	Detection method	Is it detectable?
1	Surface defects	TOP LIGHT	YES
2	bottom defects	TOP LIGHT	YES

Sample test images:

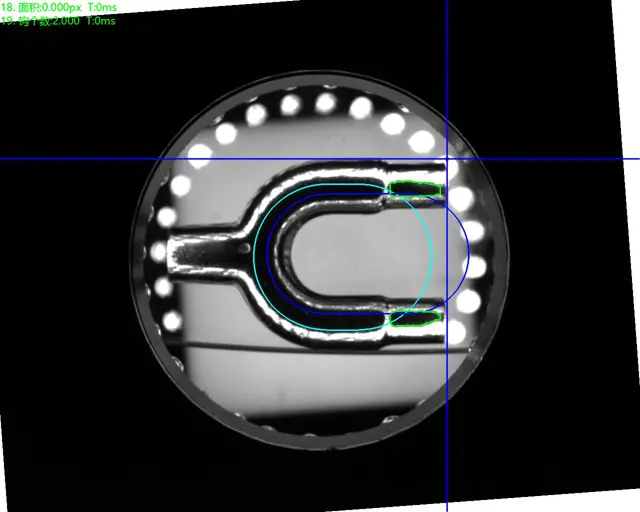

Original image of bottom positive light detection

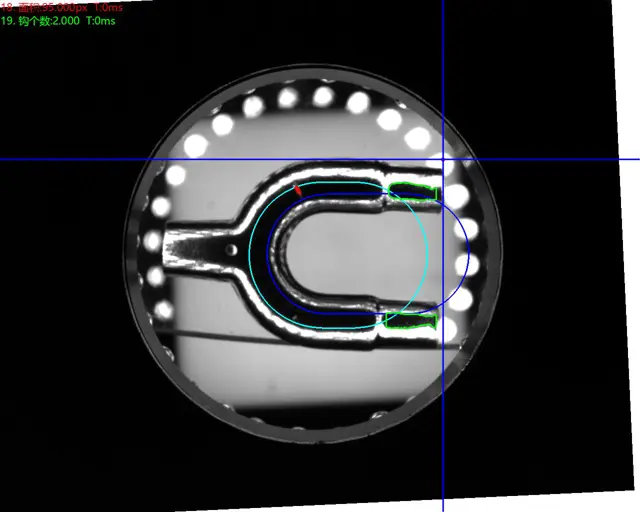

NG -scratches

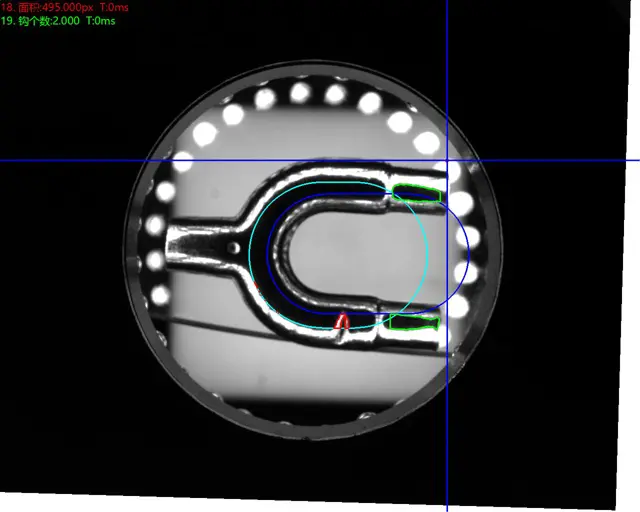

NG - damage

Installation requirements:

Sufficient space needs to be ensured for Copper Tube Automatic Vision Inspection Equipment installation.

Ambient temperature: 0-50 degrees Celsius;

Air humidity: below 90% RH;

Electronic interference: Providing the equipment with a location where electronic interference is minimal.

Power supply: AC 220V, 50Hz, power consumption <1KVA.

Production Details

Copper Tube Automatic Vision Inspection Equipment is based on a relative measurement method, calculating actual dimensions through traceability, magnification calibration, automatic edge lifting, and screen image measurement. In precision measurement, a magnification of 35x or higher is required to achieve micron-level accuracy. At this magnification, the line-of-sight width is less than 5mm. For objects larger than 5mm, this must be combined with displacement analysis readings and window measurement. In the increasingly intelligent and automated industrial production processes demanding higher precision and accuracy, machine vision systems are a highly efficient inspection method for industrial products.
